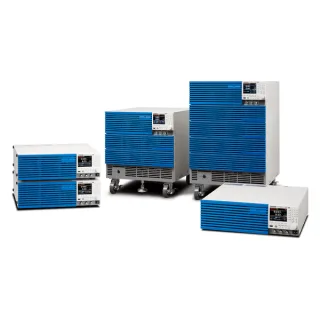

Compact High Voltage DC Electronic Load
PLZ-5WH2 Series

The PLZ-5WH2 high-power DC electronic load series is where durable, reliable ingenuity meets multifunctional, high-power design.Providing 5 variety of power range line-ups, from a 1 kW benchtop style model, to a high-power model that can sink up to 20 kW of power in a single unit. You can easily select the applicable power range according to the load.

Multifunctional Electronic Load (CC/CV/CR/CP)

Features

Multifunctional Electronic Load (CC/CV/CR/CP) PLZ-5WH2 Series

For evaluation of large-capacity power supplies / large-capacity storage batteries, etc!
Testing with hyper-realistic load simulation made possible!

The PLZ-5WH2 high-power DC electronic load series is where durable, reliable ingenuity meets multifunctional, high-power design.Providing 5 variety of power range line-ups, from a 1 kW benchtop style model, to a high-power model that can sink up to 20 kW of power in a single unit.

You can easily select the applicable power range according to the load. Load simulation can be achieved faster than ever before thanks to the reliable, high-speed design of the PLZ-5WH2 current control circuits. Accurate current measures can be made with extremely high-setting resolution. A color LCD display allows for highly visible, user-friendly front-panel operation. RS232C, USB, and LAN digital inter faces are included as standard for simple integration into any system.

Multifunctional Electronic Load (CC/CV/CR/CP)
Maximum Operating Voltage 1000V

Ideal for high capacity power supply and rechargeable battery evaluation!

Operation mode

The PLZ-5WH2 series has the following five Operation modes. In Operation mode other than +CV mode, ” UVPL* ” can be set to control Current so that the voltage does not fall below the UVP setting or less due to excessive current flow, and “UVPT” can be set to load-off. UVPL” is the “+CV mode” in the PLZ-5W series.

Open in a new windowZOOM
Constant current (CC) modeWhen a current value is specified, the current is kept at that value even when the voltage changes.
Constant resistance (CR) modeWhen a conductance value is specified, the product sinks the current proportional to the voltage variation by using the value as a proportionality constant.
Constant voltage (CV) modeWhen a voltage value is specified, the product runs the current so that the voltage is kept at that value.
Constant power (CP) modeWhen a power value is specified, the product runs the current so that the power is kept at that value.
Arbitrary I-V characteristics (ARB) modeThe desired load characteristics can be set by specifying multiple arbitrary voltage values and current values as I-V characteristics.

Arbitrary I-V Characteristics (ARB) Mode

In ARB mode, arbitrary I-V characteristics can be set by registering multiple I-V characteristic points (pairs of voltage and current values). Vales can be registered from 3 to 100, and linear interpolation is performed between the values. Minimum voltage (0.00V), current (0.00A) and the maximum viktage (1010.00V) are fixed.

Arbitrary I-V Characteristics (ARB) Mode

Maximum Slew Rate of 20 A/μs

Rise time to Rated current is 20A/μs. Supports high-speed transient response tests, which are becoming increasingly important in power supply evaluations. In case of PLZ20005WH2

Maximum Slew Rate of 20 A/μs

Up to 100 kW with parallel operation (Max. 5 units)

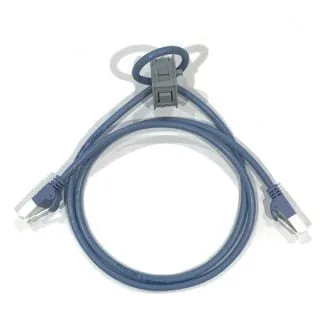

Parallel operation can be connected with a single parallel operation cable *! Flexible “high capacity” up to 5 units even with different models! (Max. 100kW, 2000A) *Needed between models to be connected. 12kW/20kW models come standard; 1kW/2kW/4kW models are optional.

Parallel operation (max. 5 units) is available on all models by simply connecting an optional parallel operation cable

Wide Ranging Operating Voltage up to 1000 V

Operating voltage ranges from 10 V to 1000 V. The minimum operating voltage required to sink current is 1.5 V.

Wide Ranging Operating Voltage

Communication Interface

LAN (LXI)/USB/RS232C interface standard *GPIB (option)

Use a browser from a PC, smartphone, or tablet to access the web server built into the PLZ-5WH2 series for convenient control and monitoring.

LXI compliant!

Load On/Off

The following load on/off settings are available in addition to standard operations that can be carefully adjusted to fit the needs of any test environment.

  • Start with “load on” when power is turned on
  • Display elapsed “load on” time
  • Auto “load off” when time limit is reached
  • Control “load on/off” with external controls such as relays
  • “Load off” by specifying conditions (Cutoff function)

Cutoff function

The cutoff function allows the user to enable “load off” once the elapsed time/voltage drop/integrated current/integrated power has been reached after “load on”. Multiple factors can be selected, with load off being implemented after the first requirement is met.

Open in a new windowZOOM
Elapsed timeThe load turns off when the elapsed time value reaches the specified value.
Voltage drop*The load turns off when the voltmeter value reaches the specified value.
Integrated currentThe load turns off when the ampere-hour meter value reaches the specified value.
Integrated powerThe load turns off when the watt-hour meter value reaches the specified value.

Changing the Response Speed

Set the response speed for CV, CR, or ARB mode according to the DUT’s conditions and application.

Open in a new windowZOOM
ItemDescription
ResponseVoltageSet the response speed for CV mode: Normal, Fast
ConductanceSet the response speed for CR mode: Normal, Fast
ARBSet the response speed for ARB mode. The value is the
filter response time. Select OFF for no filter.
OFF, 500 μs, 1 ms, 2 ms, 5 ms, 10 ms, 20 ms, 50 ms,
100 ms

Soft Start

“Soft start” is a function that controls the rise time of the load current. “Soft start” functions only when all the following conditions are met:

  • The rise time of the soft start has been set.
  • “Load on” state is in constant current (CC) mode.
  • When there is an input that exceeds the minimum operating condition after the load input terminal has no input.

If the load current rises sharply, the DUT output may become unstable or the DUT’s overcurrent protection circuit may be activated. In such situations, it is possible to make the load current rise slowly only when the device is activated.

Soft start is a function that limits the rise time of the load current.

Open in a new windowZOOM
Operation modeCC
Time setting range500 μs, 1 ms, 2 ms, 5 ms, 10 ms, 20 ms, 50 ms, 100 ms, or off

Data Logging Function

The data logging function allows the user to log measurement values (current, voltage, power) in the internal memory, and display logged data on an LCD screen (Table) as a chart (Chart). By setting measurement recording conditions, you can control the timing that measurements are recorded.

Data Logging Function

Open in a new windowZOOM
ConditionSetting rangeDescription
TriggerSet the measurement recording timing and the number of times to record measurements.
SourceEvent (trigger source) that defines the measurement recording condition. Recording starts after the Initiate key is pressed and a trigger is received.
ImmediatePressing Initiate applies a trigger immediately.
BUSApplies a trigger when a *TRG command is received from a PC or when the *TRG key on the front panel is pressed.
DIGITAL2* Applies a trigger when a signal is received at pin 13 of the EXT CONT connector.
MSyncThe triger-application timinig is synced between PLZ-5WH2 units that are synchronized.
TALinkApplies a trigger when a step is executed if Generate is set to TALink in the sequence step settings
Load OffApplies a trigger when the load is turned off.
Count1 to 65536The number of times to recorded measurements.
Delay0 μs to 100 s
(resolution: 10 μs)
The delay time from trigger application until measurement recording.
IntervalDisable/
Enable
Sets whether to insert an interval between recordings when Count is 2 or higher.
Interval Time10 μs to 3600 s
(resolution: 10 μs)
Recording interval time when Interval is set to Enable.
Sense Aperture10 μs to 1 s
(resolution: 10 μs)
Recording time per session. The average value over time is recorded.

*Only when Direction of Digital 2 is set to Input

Integrated Data Function

Time elapsed, integrated current and integrated power can be logged. Logging (integration) can be coordinated to start/finish when the load turns on/off or during the start or end of a sequence. Logging can also be controlled arbitrarily.

Open in a new windowZOOM
ItemSetting rangeDescription
Integral GateSet the integrated data recording period.
NoneIntegrated data recording is started/stopped manually.
Load OnRecording is started/stopped automatically in synchronization with load on/load off. Or, recording is started or stopped manually.
Program RunRecording is started/stopped automatically in synchronization with sequence execution start/stop. Or, recording is started or stopped manually.
ResetSelects the integrated data reset method. If the unit is restarted, integrated data is reset.
ManualIntegrated data is reset when the “Reset” key is pressed.
AutoIntegrated data is automatically reset before the start of recordings. Or, integrated data is reset when the “Reset” key is pressed.

Integrated Data Function

Saving Measurement Data

Measurement data can be stored in CSV format to a USB memory device.

Reproduce the load as you imagine it.
Testing with hyper-realistic load simulation made possible!

Pulse function

Pulse function refers to the operation of executing two settings repetitively. It is suitable for transient response characteristics testing of large capacity power supplies and batteries. When the pulse operation is in progress, a trigger signal is output from the TRIG OUT connector on the front panel. You can set this regardless of whether the load is on or off. This function operates in CC and CR modes. The pulse amplitude is set with a value or a percentage of the load value.

Pulse function

When the pulse operation is in progress, a trigger signal is output for 10 μs from the TRIG OUT connector on the front panel when the current amplitude changes from low (Depth) to high (Set) level.

The trigger signal is output for 10µs.

Open in a new windowZOOM
Operation modeCC and CR
Frequency setting range1.0 Hz to 10.0 kHz
Frequency setting resolution*1 Hz to 10 Hz0.1Hz
11Hz to 100 Hz1Hz
110Hz to 1000 Hz10Hz
1.1kHz to 10.0 kHz0.1kHz

Sine Function

The sine function varies the current sinusoidally. It is suitable for superposed ripple testing of large capacity power supplies and batteries. When a sine operation is in progress, a trigger signal is output from the TRIG OUT connector on the front panel. You can set this regardless of whether the load is on or off. This function operates in CC mode. You cannot set the slew rate. Set the sine amplitude with a value.

Sine Function

When a sine operation is in progress, a trigger signal is output for 10 μs from the TRIG OUT connector on the front panel when the current passes through the Set value on the rising edge (sine wave phase at 0 degrees).

Signature Function Trigger

Open in a new windowZOOM
Operation modeCC
Frequency setting range1 Hz to 1 kHz, 2 kHz, 5 kHz, 10 kHz
Frequency setting resolution*1 Hz to 10 Hz1Hz
20 Hz to 100 Hz10Hz
200 Hz to 1000 Hz100 Hz
1000 Hz to2 kHz, 5 kHz, 10 kHz

Sequence function

A sequence consists of programs and steps. A program is a collection of steps. Steps are executed in order one at a time, starting from step 1. The completion of the last step signifies that the program has been executed once. When the specified number of program loops is completed, the sequence ends. You can set the load state (load on or off, load value, slew rate) at the end of the sequence of a program.

A sequence consists of a program and steps. A program is a collection of steps.

Open in a new windowZOOM
Setting rangeSetting itemDescription
By stepLoad valueCurrent, conductance, voltage, power.
The values that can be set depend on the current operation mode.
Slew rateSets the speed of change when the current is changed.
Step execution time0.000050 s to 3600000 s (50 μs to 1000 h), resolution: 1 μs
Load on/off controlTo turn the load on, set the load setting transition method to step or ramp.
OthersTrigger signal setting, trigger signal output
For each programNumber of loops of program1 to 100000 repetitions, or infinite repetitions.
Protection functionsSpecifies the value at which a protection function (OCP, OPP, UVP) is activated.

TALink

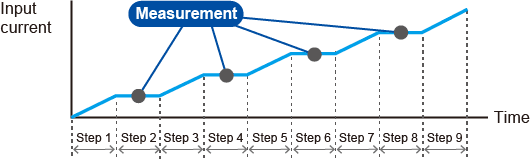

The TALink (Transient Acquire Link) trigger makes it possible to log data in PLZ-5WH2 in synchronization with the sequence steps. Logged data can then be accessed through communication with the PLZ-5WH2 and saved to a USB as a CSV file.

The TALink (Transient Acquire Link) trigger

Alarm Function

This function detects anomalies and protects the DUT. There are two types of alarm based on the urgency level: alarm 1 (high urgency) and alarm 2 (low urgency).

Open in a new windowZOOM

Alarm 1 (high urgency)

NameOperation
Overvoltage detection (OVP)Load off
Reverse-connection detection (Reverse)
Overheat detection, overcurrent detection of the front-panel DC INPUT terminals (OTP/Front)
Alarm input detection (External)
Parallel operation anomaly detection

Alarm 2 (low urgency)

NameModeOperation
Overcurrent protection (OCP)CR, CV, CPLoad off or limit
Overpower protection (OPP)CC, CR, CV, ARB
Undervoltage protection (UVP)CC, CR, CP, ARBLoad off, limit, or activation off
Watchdog protection (WDP)AllLoad off

This function limits the current (UVPL) or turns off the load (UVPT) when the voltage applied to the product becomes equal to or less than the UVP setting. You can set this regardless of whether the load is on or off.

TripTurns the load off. The setting display changes to UVPT.
LimitLimits the voltage so as not to become equal to or less than the set value. The setting display changes to UVPL.

ABC Preset Memories

Three setting values can be stored in preset memory slots A, B, and C. All saved settings can be accessed at the press of a button, which is perfect for when you want to quickly switch between three sets of values.

Setup Memory

The setup memory can store up to 20 sets (0 to 19) of the current conditions of the items listed below. The current conditions can also be saved in a USB memory device.

  • Operation mode
  • Load values (current, voltage, conductance, power)
  • Slew rate
  • Pulse amplitude (current/conductance or percentage)
  • Pulse interval (frequency/time of one cycle and duty cycle/operating time on the high side)
  • Sine amplitude (current)
  • Sine frequency
  • Alarm operating conditions
  • Content of ABC preset memories

A file saved on the PLZ-5WH2 can be transferred to the PLZ-5W via a USB memory device. If the UVP is set to “limit” on the PLZ-5WH2, this will be changed to +CV mode on the PLZ-5W (PLZ205W, PLZ405W, PLZ1205W).

External control

PLZ-5WH2 can be controlled/monitored from an external device.
The external control terminals are isolated from the load inputterminal.

External control

Open in a new windowZOOM
Terminal No.In/Out *1Signal nameDescription
1STATUS COMStatus signal common for pins 14 to 16.
2NC
3NC
4NC
5INALARM CLEARAlarm clearing input
6INALARM INAlarm input
7NC
8NC
9INTRIG INPUTTrigger input. Resumes program execution if Wait(post) was set to Trig IN in a sequence step and the program was paused.
10A COMThis is connected to the chassis.
11OUTDIGITAL 0DIGITAL0 output. Sequence control possible.
12OUTDIGITAL 1DIGITAL1 output. Sequence control possible.
13IN/OUTDIGITAL 2DIGITAL2 I/O. Input/output switchable. Sequence signal output or the trigger input of sequences and measurement function.
14OUTALARM1ALARM1 output. ON when overvoltage detection, reverse-connection detection, overheat detection, alarm input detection, or parallel operation anomaly detection is activated, and also during external alarm input.
15OUTALARM2ALARM2 output. ON during OCP, OPP, UVP, or WDP operation.
16OUTLOAD ON STATUSLoad-on status output. ON during load on.
17NC
18INLOAD ON / OFF CONTLoad on/off control input. Logic level switchable.
19A COMThis is connected to the chassis.
20INEXT CONT ADDExternal voltage control input. Controls the load setting of CC mode by adding current.
21INEXT CONT MODEExternal voltage control input. Controls the load values of CC, CR, and CP modes.
22INEXT CONT CVExternal voltage control input. Controls the voltage of CV mode.
23A COMThis is connected to the chassis.
24OUTIMONCurrent monitor output.
25NC

*1 1000 V reinforced insulation between each terminal and the DC INPUT terminal.

Current and Voltage Monitor

In addition to the conventional current monitor output, voltage monitor output (0 V to 10 V/Output of 1/100 of measured voltage) has been added to the front BNC connector.

Current and Voltage Monitor

USB Keyboard

When a keyboard is connected to the USB connector on the front panel, numbers/characters can be entered from the keyboard.
The types of keyboards that you can use are 101-key and 104-key keyboards.

You can enter numbers/characters if you connect a keyboard

Synchronized Operation

The following synchronization features are available when simply connecting the PLZ-5WH2 with other equipment using a communication cable. Any of the models in the PLZ-5WH2 series can be connected together. Synchronized operation is possible even during parallel operation.

  • Synchronizing load on/off among multiple pieces of equipment.
  • Synchronizing measurements.
  • Synchronizing the start time and resume time for sequences across multiple units.

Synchronized Operation

Remote sensing function

With remote sensing, the voltage measurement point can be changed from the load input terminal to the DUT sensing point. By connecting the sensing leads to the DUT, the effects of voltage drops caused by resistance in the load cables can be reduced and the operation in CR / CV / CP / ARB mode stabilized.

  • Remote sensing input rated voltage: 1000 V

Applications

Battery Discharge Testing

Battery discharge testing and storage of results can be performed without a PC.
The acquired data can be saved in CSV format on USB memory.

Battery

EV Charger Aging Tests

LV124 Standard L-02 Life test – high-temperature endurance test (Durability – Heat) [Life test]

Combination of AC power source and electronic load equipment

EV Charger Aging Tests

DC-DC Converter Evaluation

DC-DC converter performance tests vital for automotive electric components can easily be carried out by controlling the converter input (DC power supply) and output (DC electronic load). The DC power supply and electronic load can be started up simultaneously for variation tests and efficiency tests.

DC-DC Converter

Specifications

Specifications
Open in a new windowZOOM
SpecificationsRatingConstant current (CC) modeConstant voltage (CV) modeConstant resistance (CR) modeConstant power (CP) modePower consumption
ModelOperating voltageCurrentPowerOperating rangeSetting rangeResolutionOperating rangeSetting rangeResolutionOperating range *Setting rangeOperating rangeSetting rangeResolution
Range HRange LRange HRange L
PLZ1005WH210 to 1000 V20 A1000 W0 to 20 A0 to 20.2000 A0.0005 A10 to 1000 V0 to 1010.00 V0.02 V500mS to 0S5mS to 0S505.00mS to 0.00S5.05000mS to 0.00000S0 to 1000 W0 to 1010.00 W0.02 W70 VAmax
PLZ2005WH240 A2000 W0 to 40 A0 to 40.400 A0.001 A1S to 0S10mS to 0S1.01000S to 0.00000S10.1000mS to 0.0000S0 to 2000 W0 to 2020.00 W0.05 W90 VAmax
PLZ4005WH280 A4000 W0 to 80 A0 to 80.800 A0.002 A2S to 0S20mS to 0S2.02000S to 0.00000S20.2000mS to 0.0000S0 to 4000 W0 to 4040.0 W0.1 W150 VAmax
PLZ12005WH2240 A12000 W0 to 240 A0 to 242.40 A0.005 A6S to 0S60mS to 0S6.0600S to 0.0000S60.600mS to 0.000S0 to 12000 W0 to 12.1200 kW0.0005 kW
(0.5)
360 VAmax
PLZ20005WH2400 A20000 W0 to 400 A0 to 404 A0.01 A10S to 0S100mS to 0S10.1000S to 0.0000S101.000mS to 0.000S0 to 20000 W0 to 20.2000 kW590 VAmax

*1. Conductance [S] = input current [A]/input voltage [V] = 1/resistance [Ω]

Line-up

Options

Downloads

Icon
Compact Hight Voltage DC Electronic Load - PLZ-5WH2 Series

    Please feel free to contact us with any questions or concerns.

    Download a Product CatalogView List
    Request a QuotationContact Us
