Insulation Resistance Tester

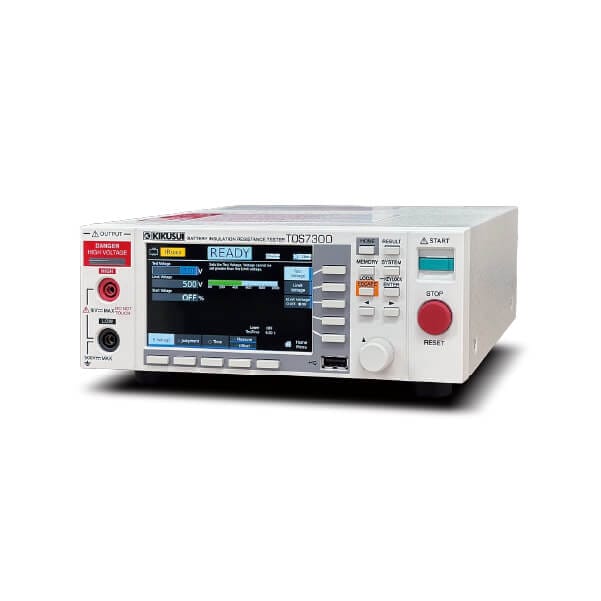

TOS7300

Price range: 150,000円 through 165,000円

Output voltage range: 25 Vdc to 1000 Vdc
Resistance measurement range: 0.001 MΩ to 10.00 GΩ
Upper/lower limit judgement, short-circuit detection, and contact check function
RS-232C / USB interface standard
WITH LAN models come standard with a LAN interface
Equipped with a color LCD

Image	SKU	Interface	標準価格	WEBかんたんお見積り
	TOS7300	RS232C, USB	150,000円（税込：165,000円）	この製品はすでに見積書リストに追加されています見積書リストを見る
	TOS7300 with LAN	RS232C, USB, LAN	165,000円（税込：181,500円）	この製品はすでに見積書リストに追加されています見積書リストを見る

SKU: TOS7300/TOS7300 WITH LAN

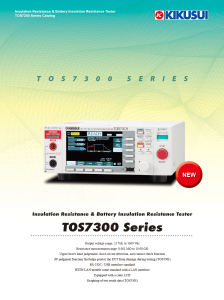

Catalog
Manual
2D CAD

Line-up

Image	SKU	Interface	標準価格	WEBかんたんお見積り
	TOS7300	RS232C, USB	150,000円（税込：165,000円）	この製品はすでに見積書リストに追加されています見積書リストを見る
	TOS7300 with LAN	RS232C, USB, LAN	165,000円（税込：181,500円）	この製品はすでに見積書リストに追加されています見積書リストを見る

Product Overview

It is suitable for research and development facilities, quality assurance testing and standard certification agency testing facilities, production lines, and more.

In the TOS7300 series, the output voltage can be freely set from 25 V to 1000 Vdc in 1 V steps (compliant with the output characteristics of JIS C 1302), making it an insulation resistance tester suitable for a wide range of applications—from electrical/electronic components to complete electrical and electronic equipment. Test settings, summaries, and diagrams are clearly visible on 4.3-inch color display. This series also comes standard with USB 2.0, USB compliant with USB-TMC, and RS232C. WITH LAN models come with a LAN interface. When used together with external control via Signal I/O, you can build highly flexible automated test setups. In addition, TOS7301 and TOS7301 WITH LAN models support dV judgment, which helps protect the EUT from damage during testing. They also have faster selectable measurement times (Aperture Time) and provide a graphical display of measurement data during testing. These models are ideal not only as insulation resistance testers for secondary batteries where tight takt times are required, but also for R&D applications across a wide variety of materials.

Open in a new window

Easy operation for fast, safe, reliable testing!!

High-Speed Measurement Times

Boost productivity with speeds down to 10 ms!

Select a measurement time from 10 ms*/ 16.66 ms/ 20 ms/ 100 ms. Shorter measurement times help reduce takt time.
*TOS7301 and TOS7301 WITH LAN only

Safe and Reliable

Includes contact check and short-circuit detection!

Features a contact check function that detects poor connections to the EUT or broken test leads, plus a short-circuit detection function that identifies a shorted EUT before high voltage is applied to help prevent EUT damage.
