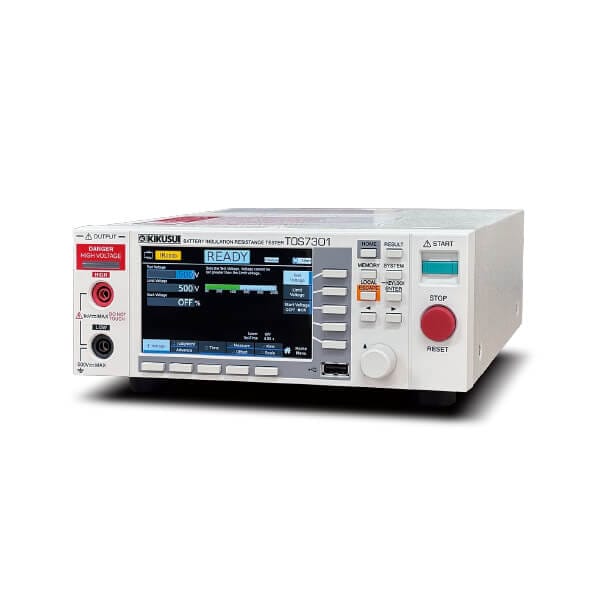

Battery Insulation Resistance Tester
TOS7301
Price range: 220,000円 through 235,000円
- Output voltage range: 25 Vdc to 1000 Vdc
- Resistance measurement range: 0.001 MΩ to 10.00 GΩ
- Upper/lower limit judgement, short-circuit detection, and contact check function
- dV judgment function that helps protect the EUT from damage during testing (TOS7301)
- RS-232C / USB interface standard
- WITH LAN models come standard with a LAN interface
- Equipped with a color LCD
- Graphing of test result data (TOS7301)
| Image | SKU | Interface | 標準価格 | WEBかんたんお見積り |
|---|---|---|---|---|
 | TOS7301 | RS232C, USB | 220,000円 （税込：242,000円） | |
| TOS7301 with LAN | RS232C, USB, LAN | 235,000円 （税込：258,500円） |
Line-up
| Image | SKU | Interface | 標準価格 | WEBかんたんお見積り |
|---|---|---|---|---|
| TOS7301 | RS232C, USB | 220,000円 （税込：242,000円） | |
| TOS7301 with LAN | RS232C, USB, LAN | 235,000円 （税込：258,500円） |
Product Overview
It is suitable for research and development facilities, quality assurance testing and standard certification agency testing facilities, production lines, and more.
In the TOS7300 series, the output voltage can be freely set from 25 V to 1000 Vdc in 1 V steps (compliant with the output characteristics of JIS C 1302), making it an insulation resistance tester suitable for a wide range of applications—from electrical/electronic components to complete electrical and electronic equipment. Test settings, summaries, and diagrams are clearly visible on 4.3-inch color display. This series also comes standard with USB 2.0, USB compliant with USB-TMC, and RS232C. WITH LAN models come with a LAN interface. When used together with external control via Signal I/O, you can build highly flexible automated test setups. In addition, TOS7301 and TOS7301 WITH LAN models support dV judgment, which helps protect the EUT from damage during testing. They also have faster selectable measurement times (Aperture Time) and provide a graphical display of measurement data during testing. These models are ideal not only as insulation resistance testers for secondary batteries where tight takt times are required, but also for R&D applications across a wide variety of materials.
Easy operation for fast, safe, reliable testing!!
High-Speed Measurement Times
Boost productivity with speeds down to 10 ms!
Select a measurement time from 10 ms*/ 16.66 ms/ 20 ms/ 100 ms. Shorter measurement times help reduce takt time.
*TOS7301 and TOS7301 WITH LAN only
Safe and Reliable
Includes contact check and short-circuit detection!
Features a contact check function that detects poor connections to the EUT or broken test leads, plus a short-circuit detection function that identifies a shorted EUT before high voltage is applied to help prevent EUT damage.
Color LCD Screen for Improved Visibility!
Equipped with a 4.3-inch color display!

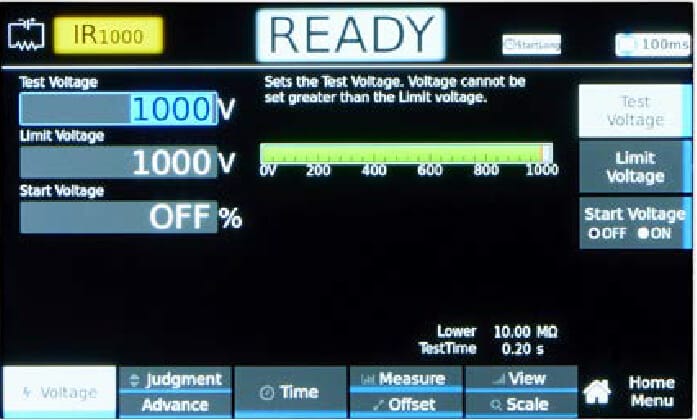

Test settings, overviews, and diagrams are clearly visible on the 4.3-inch display, making operation more intuitive.
Built-in dV Judgment Function*
Helps protect the EUT from damage!

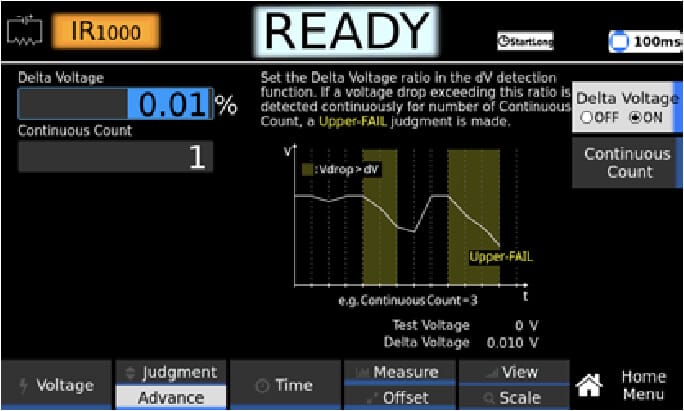

If a voltage difference exceeding the delta voltage is detected consecutively for the times specified in Continuous Count, it is judged as an Upper-FAIL(dV), and the test ends, protecting the EUT from damage.
*TOS7301 and TOS7301 WITH LAN only
Versatile Interfaces
Flexible automated testing made easy!

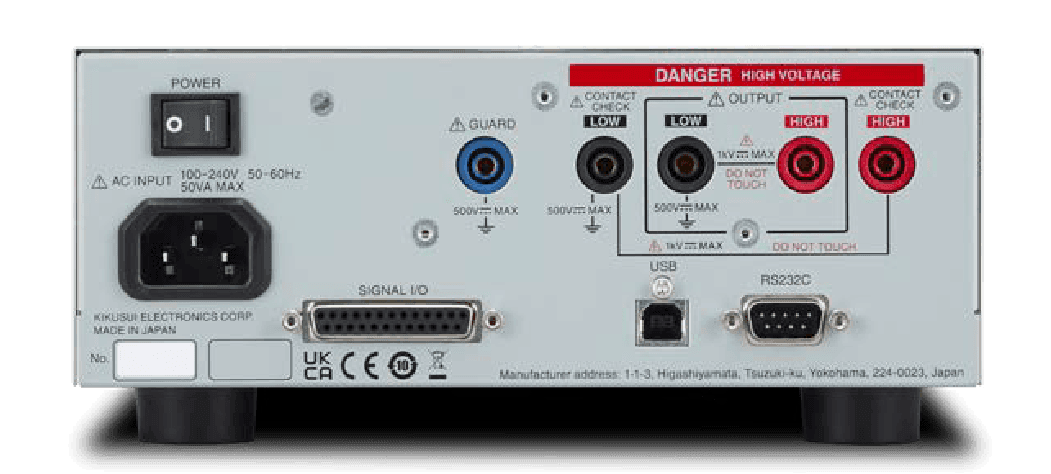

All models come standard with USB 2.0, USB-TMC compliant USB, and RS232C interfaces. In addition, WITH LAN models allow the use of a LAN interface.
Graphing of Test Result Data*
Zoom in on what you want to see!

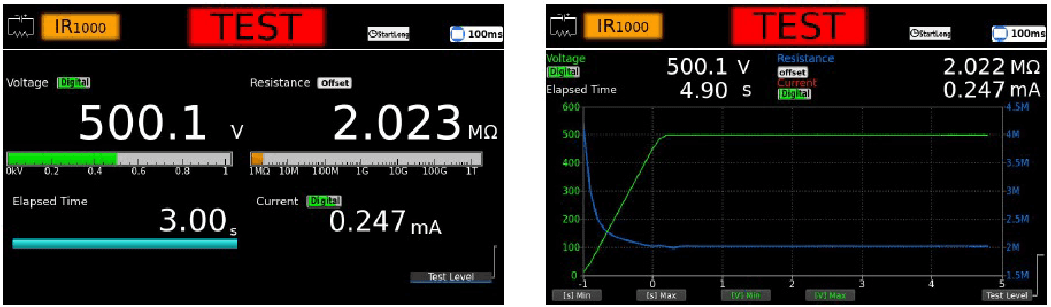

[Left] Measurement screen: Numeric display [Right] Measurement screen: Graph display
Accurately graphed sample characteristics make it easy to spot defects and other issues.
*TOS7301 and TOS7301 WITH LAN only
