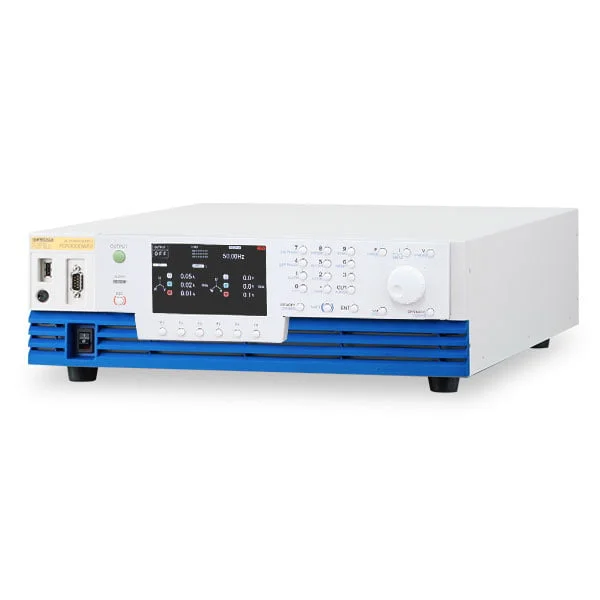

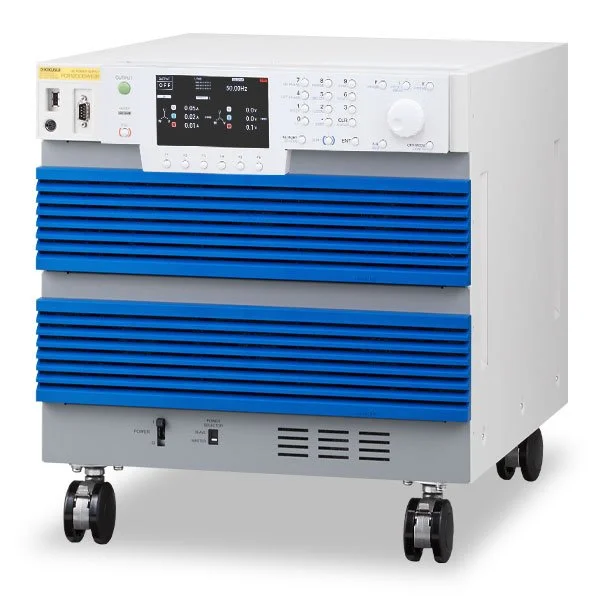

Ultra-Compact AC/DC Programmable Power Supply

PCR-WEA/WEA2 Series

PCR-WEA-WEA2-series

720,000円 – 15,900,000円

  • Compact size: 6 kVA in 6U (PCR6000WEA2/PCR6000WEA2R)
  • Up to 36 kVA in a single unit
  • AC output *1: Single-phase/Single-phase three-wire/Three-phase
  • DC output: +/-, 100% of rated power
  • 100% Regenerative-power capability
  • Mix-and-match parallel operation up to 144 kVA Same model set up is not required.*2
  • Flexible digital interface: LAN (LXI), USB, RS232C, GPIB (option)
  • Power line disturbance simulation features
  • Sequence function
  • External analog, digital control function (standard)
  • Power-saving function
  • Output frequency up to 5 kHz
  • Output rating: AC 0 to 320 Vrms, DC 0 to ±452 V

*1 For 3 kVA or more, the multi-type can switch between single-phase, single-phase 3-wire, and threephase output (PCR-WEA2). *2 Parallel operation is possible with a maximum of four units of 6 kVA or higher models, and different models can be combined as long as they have the same input voltage and input wiring system.


LAN LXILAN LXIUKCA
Login to myKIKUSUI / What is myKIKUSUI?
Request for Quotation
ImageSKU入力：皮相電力（kVA以下）Output rating AC mode: Power capacity標準価格WEBかんたんお見積り
PCR1000WEA1.41kVA-720,000円
（税込：792,000円）
PCR2000WEA2.72kVA-1,050,000円
（税込：1,155,000円）

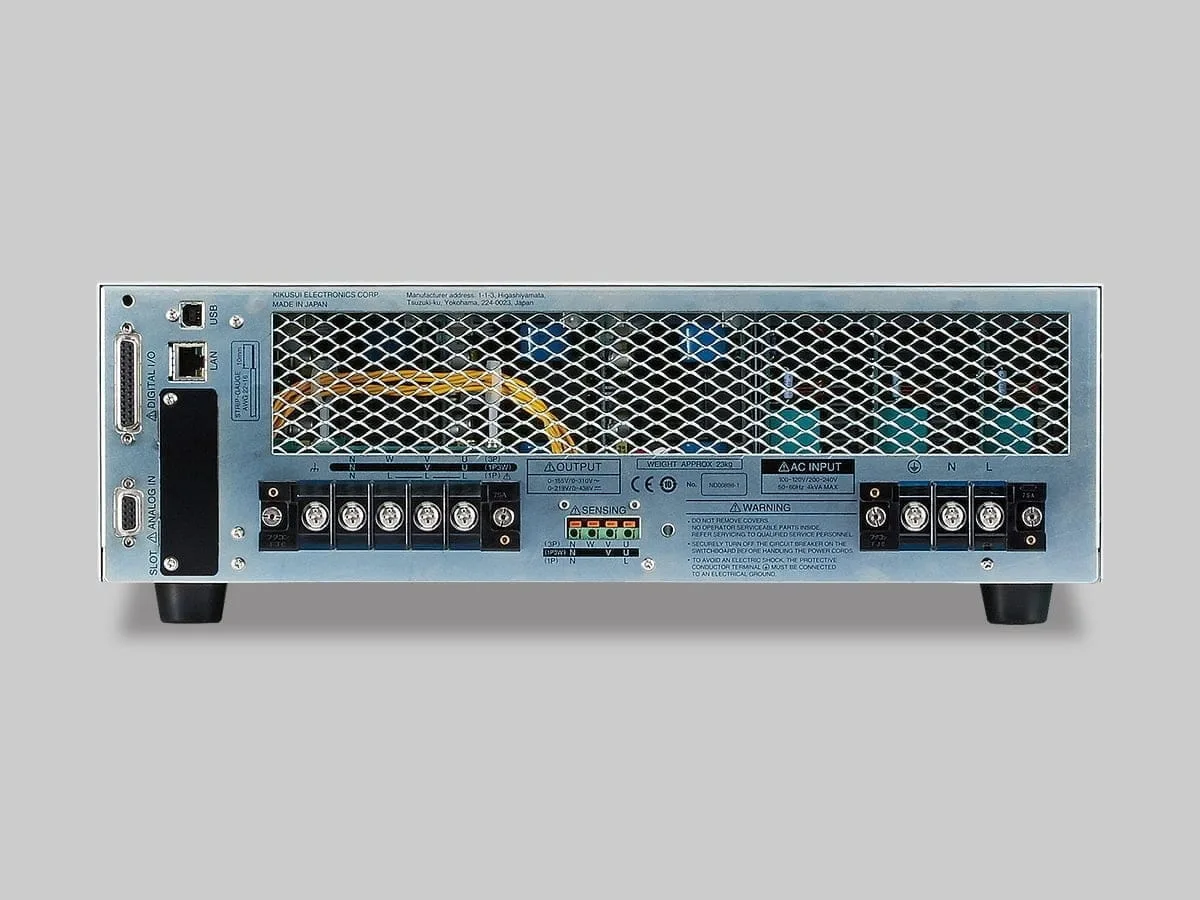

PCR3000WEA243kVA-1,410,000円
（税込：1,551,000円）

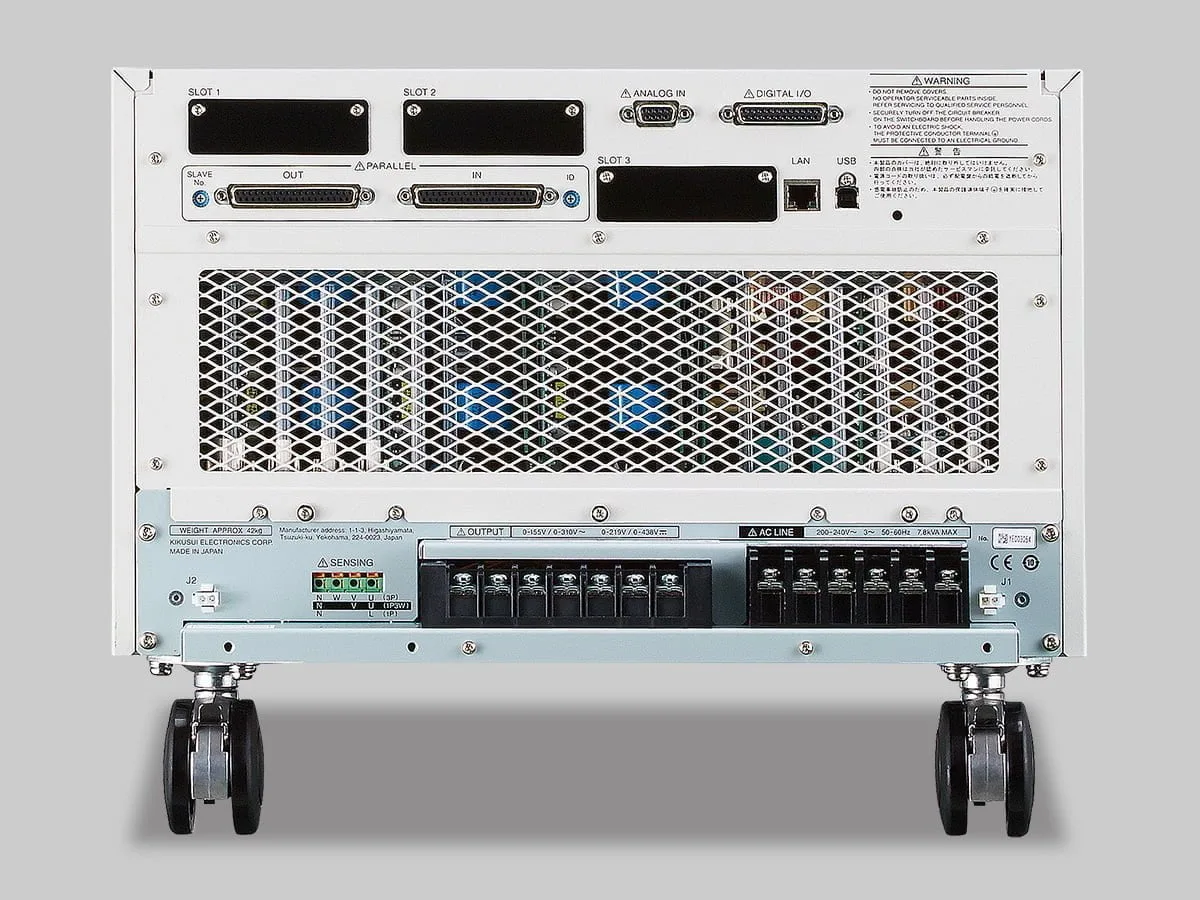

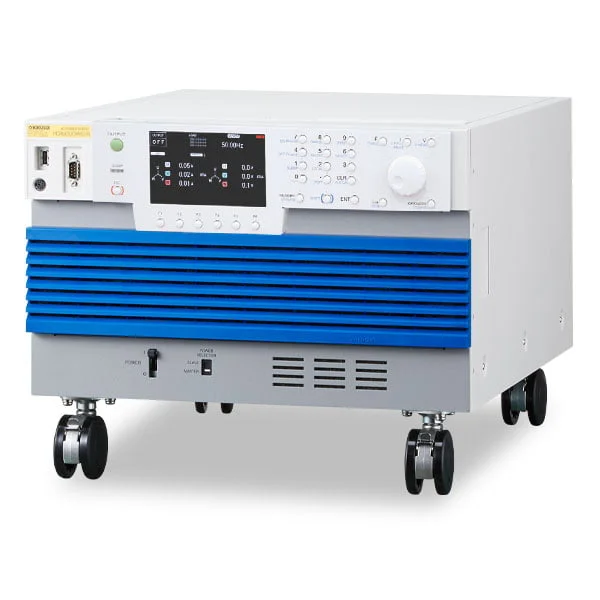

PCR6000WEA27.86kVA-2,900,000円
（税込：3,190,000円）
PCR12000WEA215.612kVA-5,500,000円
（税込：6,050,000円）
PCR18000WEA223.418kVA-8,100,000円
（税込：8,910,000円）

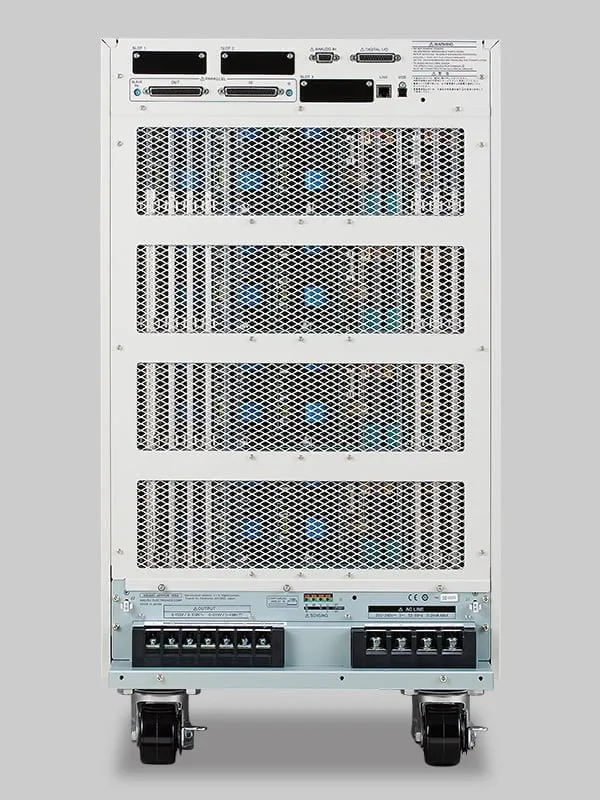

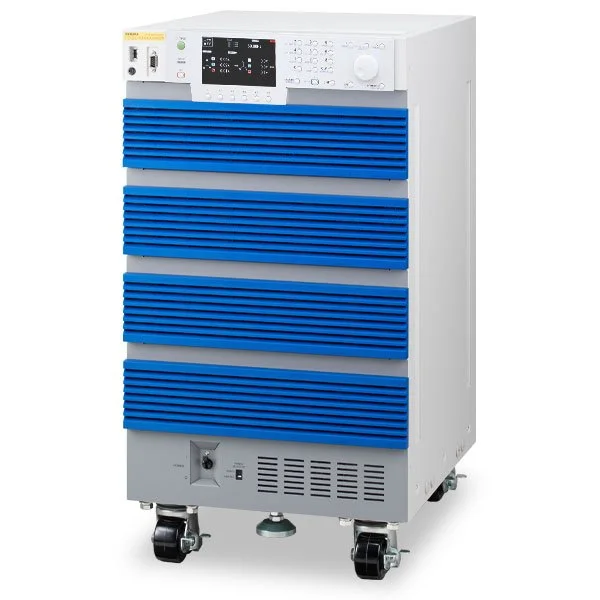

PCR24000WEA231.224kVA-10,700,000円
（税込：11,770,000円）
PCR30000WEA23930kVA-13,300,000円
（税込：14,630,000円）

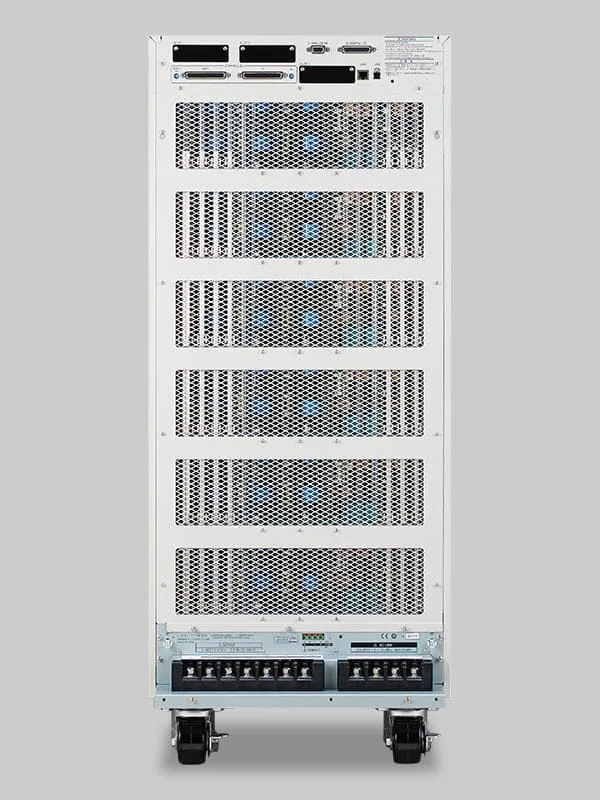

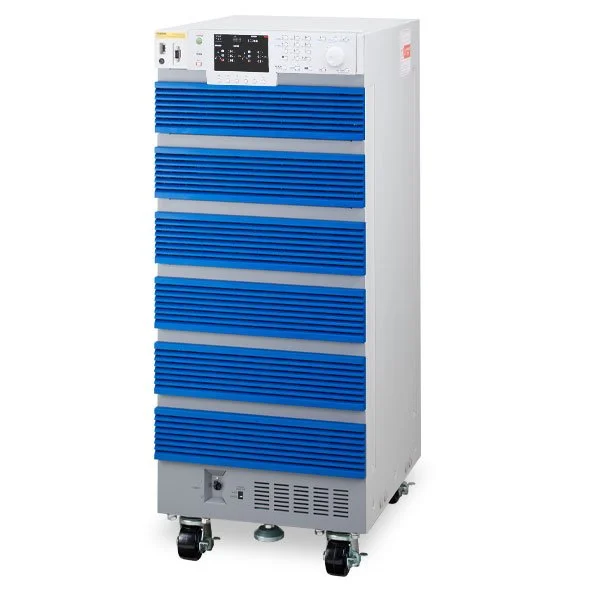

PCR36000WEA246.836kVA-15,900,000円
（税込：17,490,000円）
SKU: PCR-WEA-WEA2-series

Line-up

  • AC mode output rating
  • DC mode output rating
  • Input ratings (AC rms)
  • ZOOM
    Product ImagesModelPricePhasePower capacity[VA]Phase voltage[V]Max. current (L/H range)[A]※1Frequency[Hz]
    PCR1000WEAPCR1000WEA720,000円 （税込：792,000円）Single phase1k(The spec guaranteed voltage range)
    1 to 160/ 2 to 320
    (L/H output range)

    (Voltage setting range)
    0 to 161.0/ 0 to 322.0    		10 / 51 to 5000
    PCR2000WEAPCR2000WEA1,050,000円 （税込：1,155,000円）Single phase2k20 / 10
    PCR3000WEA2PCR3000WEA21,410,000円 （税込：1,551,000円）Single phase3k30 / 15
    Three-phase10 / 5
    Single-phase Three-wire2k
    PCR6000WEAPCR6000WEA2R
     PCR6000WEA2    		2,900,000円 （税込：3,190,000円）Single phase6k60 / 30
    Three-phase20 / 10
    Single-phase Three-wire4k
    PCR1000WEAPCR12000WEA2R
     PCR12000WEA2    		5,500,000円 （税込：6,050,000円）Single phase12k120 / 60
    Three-phase40 / 20
    Single-phase Three-wire8k
    PCR18000WEAPCR18000WEA2R
     PCR18000WEA2    		8,100,000円 （税込：8,910,000円）Single phase18k180 / 90
    Three-phase60 / 30
    Single-phase Three-wire12k
    PCR24000WEAPCR24000WEA2R
     PCR24000WEA2    		10,700,000円 （税込：11,770,000円）Single phase24k240 / 120
    Three-phase80 / 40
    Single-phase Three-wire16k
    PCR30000WEAPCR30000WEA2R
     PCR30000WEA2    		13,300,000円 （税込：14,630,000円）Single phase30k300 / 150
    Three-phase100 / 50
    Single-phase Three-wire20k
    PCR36000WEAPCR36000WEA2R
     PCR36000WEA2    		15,900,000円 （税込：17,490,000円）Single phase36k360 / 180
    Three-phase120 / 60
    Single-phase Three-wire24k
  • ZOOM
    Product ImagesModelPricePower capacity[W]Voltage (nominal)[V]Max. current (L/H range)[A]※2
    PCR1000WEAPCR1000WEA720,000円 （税込：792,000円）1k(The spec guaranteed voltage range)
    ±1.4〜 ±226 / ±2.8〜 ±452
    (L/H output range)

    (Voltage setting range)
    -227.5 〜 +227.5 / -455.0 〜 +455.0    		10 / 5
    PCR2000WEAPCR2000WEA1,050,000円 （税込：1,155,000円）2k20 / 10
    PCR3000WEAPCR3000WEA21,410,000円 （税込：1,551,000円）3K30 / 15
    PCR6000WEAPCR6000WEA2R
     PCR6000WEA2    		2,900,000円 （税込：3,190,000円）6k60 / 30
    PCR1000WEAPCR12000WEA2R
     PCR12000WEA2    		5,500,000円 （税込：6,050,000円）12k120 / 60
    PCR18000WEAPCR18000WEA2R
     PCR18000WEA2    		8,100,000円 （税込：8,910,000円）18k180 / 90
    PCR24000WEAPCR24000WEA2R
     PCR24000WEA2    		10,700,000円 （税込：11,770,000円）24k240 / 120
    PCR30000WEAPCR30000WEA2R
     PCR30000WEA2    		13,300,000円 （税込：14,630,000円）30k300 / 150
    PCR36000WEAPCR36000WEA2R
     PCR36000WEA2    		15,900,000円 （税込：17,490,000円）36k360 / 180
  • ZOOM
    Product ImagesModelPricePhaseVoltage (nominal)[V]Apparent power[kVA以下]Current[A以下]
    PCR1000WEAPCR1000WEA720,000円 （税込：792,000円）Single phase100 to 120, 200 to 2401.417 / 8.5
    PCR2000WEAPCR2000WEA1,050,000円 （税込：1,155,000円）Single phase100 to 120, 200 to 2402.732 / 16
    PCR3000WEAPCR3000WEA21,410,000円 （税込：1,551,000円）Single phase100 to 120, 200 to 240448 / 24
    PCR6000WEAPCR6000WEA22,900,000円 （税込：3,190,000円）3-phase 4-wire 400 VLine voltage 380 to 4807.814
    PCR1000WEAPCR12000WEA25,500,000円 （税込：6,050,000円）3-phase 4-wire 400 VLine voltage 380 to 48015.628
    PCR18000WEAPCR18000WEA28,100,000円 （税込：8,910,000円）3-phase 4-wire 400 VLine voltage 380 to 48023.442
    PCR24000WEAPCR24000WEA210,700,000円 （税込：11,770,000円）3-phase 4-wire 400 VLine voltage 380 to 48031.256
    PCR30000WEAPCR30000WEA213,300,000円 （税込：14,630,000円）3-phase 4-wire 400 VLine voltage 380 to 4803970
    PCR36000WEAPCR36000WEA215,900,000円 （税込：17,490,000円）3-phase 4-wire 400 VLine voltage 380 to 48046.884

Specifications

Input (AC rms)

ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
  PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
  PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
Nominal input voltage1P2W input model100 Vac to 120 Vac / 200 Vac to 240 Vac *1–
3P3W 200 V input model / 3P3W 400 V input model–200 Vac to 240 Vac (3 phase line voltage) *2 / 380 Vac to 480 Vac (3 phase line voltage) *2 *6
3P4W input model–380 Vac to 480 Vac (3 phase line voltage) *3
PhaseSingle-phaseThree-phase
Nominal input Frequency50 Hz to 60 Hz
Input frequency range45 Hz to 65 Hz
Apparent power1.4 kVA and less2.7 kVA and less4 kVA and less7.8 kVA and less15.6 kVA and less23.4 kVA and less31.2 kVA and less39 kVA and less46.8 kVA and less
Power factor *40.95(TYP)200 V: 0.97(TYP), 400 V: 0.95(TYP) 3P3W input model / 0.95(TYP) 3P4W input model
Maximum current1P2W input model *117 A / 8.5 A32 A / 16 A48 A / 24 A–
3P3W 200 V input model–27 A53 A80 A106 A133 A159 A
3P3W 400 V input model 14 A28 A42 A56 A70 A84 A
3P4W input model–14 A28 A42 A56 A70 A84 A
Hold-up time for power interruption *410 ms
Protective conductor current *51P2W input model *13.5 mA or less–
3P3W 200 V input model–10 mA or less15 mA or less20 mA or less25 mA or less30 mA or less35 mA or less
3P3W 400 V input model–10 mA or less20 mA or less30 mA or less40 mA or less50 mA or less60 mA or less
3P4W input model–3.5 mA or less

*1 100 V/200 V input system (auto select) *2 Models with an “R” in the name (6 kVA or higher) have a three-phase, three-wire input. *3 Models of 6 kVA or more without an “R” in the name have three-phase 4-wire input. *4 At output voltage 100 V/200 V, rated output current, sine wave, load power factor 1, output frequency 40 Hz to 1 kHz *5 At output voltage 100 V/200 V, rated output current, sine wave, load power factor 1, output frequency 45 Hz to 65 Hz *6 For the 400V input model, do not connect to transformer equipment with isolation voltage exceed-ing 300 V. It cannot be connected to a delta-connected power distribution facility with one pole grounded.


Output
ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
  PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
  PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
Maximum peak current *114 times the maximum output current
Inrush current capacity *33 times the rated current (0.07 s) *12
1.4 times the rated current (0.5 s)		1.4 times the rated current (0.5 s)
Efficiency *1082 %(TYP)85 %(TYP)

AC

ZOOM
AC voltage *1Rating160 V / 320 V *2
Setting range0 V to 161.0 V, 0 V to 322.0 V
Resolution0.1 V
Setting accuracy (phase voltage) *3 *4±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V)
Setting accuracy (Line voltage) *3 *4±(0.3 % of setting + 0.3 V), ±(0.3 % of setting + 0.6 V) *5
Maximum current *1 *6Single-phase output10 A / 5 A20 A / 10 A30 A / 15 A60 A / 30 A120 A / 60 A180 A / 90 A240 A / 120 A300 A / 150 A360 A / 180 A
Single-phase three-wire output, Three-phase output–10 A / 5 A20 A / 10 A40 A / 20 A60 A / 30 A80 A / 40 A100 A / 50 A120 A / 60 A
Phase1P1P2W, 1P3W, 3P4W switchable
Power capacity1P1 kVA2 kVA3 kVA6 kVA12 kVA18 kVA24 kVA30 kVA36 kVA
Three-phase output–3 kVA6 kVA12 kVA18 kVA24 kVA30 kVA36 kVA
Single-phase three-wire output–2 kVA4 kVA8 kVA12 kVA16 kVA20 kVA24 kVA
Load power factor0 to 1 (leading or lagging)
FrequencySetting range1 Hz to 5 kHz *7 (5 kHz -3dB, <40 Hz derating required)
Resolution0.01 Hz(1.00 Hz to 100.0 Hz), 0.1 Hz(100.0 Hz to 1000 Hz), 1 Hz(1000 Hz to 5000 Hz)
Accuracy *3±0.01 %, Temperature coefficient : ±0.005 %/°C
PhaseResolution–0.01*13 , 0.1° (1 Hz to 500 Hz), 1° (500 Hz to 4 kHz), 2° (4 kHz or more)
Accuracy *3–Within ±(0.4° + fo×0.9°) *8 fo: frequency [kHz] [kHz]

DC

ZOOM
DC voltageRating *1-226 V to +226 V, -452 V to +452 V *2
Setting range *1-227.5 V to +227.5 V, -455.0 V to +455.0 V
Resolution0.1 V
Accuracy *9±（0.05 % of setting + 0.1 V）
Maximum current *610 A / 5 A20 A / 10 A30 A / 15 A60 A / 30 A120 A / 60 A180 A / 90 A240 A / 120 A300 A / 150 A360 A / 180 A
Power capacity1 kW2 kW3 kW6 kW12 kW18 kW24 kW30 kW36 kW

1 output L range, output H range *2 Specification guaranteed voltage range is 1 V to 160 V/ 2 V to 320 V (AC) and 1.4 V to 226 V/ 2.8 V to 452 V (DC) *3 At ambient temperature of 23 °C±5 °C. *4 No load, output frequency 45 Hz to 65 Hz *5 When the phase angle of 120° of each phase. *6 For output phase voltage of 100 Vac to 160 Vac/ 200 Vac to 320 Vac and out-put voltage of 100 Vdc to 226 Vdc/ 200 Vdc to 452 Vdc, output current is reduced with output voltage.
When the output frequency is between 1 Hz and 40 Hz, the output current is reduced by the output frequency. The output current is 70 % at 1 Hz. *7 On the 500 Hz limit model, the frequency is limited to 1 Hz to 500.0 Hz for three-phase output. *8 Within ±(0.4° + 2.5 μs×360°×fo×103). The following show the angles obtained by calculating the expression with the specified frequency, within ± 0.5° (at 60 Hz output), within ± 0.8° (at 400 Hz output) *9 With no load at 23°C±5°C. *10 When the output voltage is 100 V or 200 V, the output current is the rated value, the load power factor is 1, and the output frequency is between 40 Hz and 1 kHz. *11 Repeated output is possible when the crest factor is 4. *12 125 Vac/ 250 Vac (output L range/ H range) *13 Waveform bank 0, at 1 Hz to 500 Hz.


Output Voltage Stability (Phase Voltage)

ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
 PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
 PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
Line regulation *1Within ±0.1 %
Load regulation *2Within ±0.1 V/ ±0.2 V(1 Hz to 100 Hz)
Within ±0.3 V/ ±0.6 V(100.1 Hz to 500 Hz)
Within ±1 V/ ±2 V(500.1 Hz to 1 kHz)		Within ±0.2 V/ ±0.4 V(1 Hz to 100 Hz)
Within ±0.3 V/ ±0.6 V(100.1 Hz to 500 Hz)
Within ±1 V/ ±2 V(500.1 Hz to 1 kHz)
Output frequency variation *3When the output voltage correction function is enabled : Within ±0.3 %(1 Hz to 1 kHz), Within ±10 %(1001 Hz to 5 kHz) When the output voltage correction function is disabled : Within -3 dB(5 kHz)
Ripple noise *4≤ 0.25 Vrms
Ambient temperature variation *5±100 ppm/ °C (TYP)
Total harmonic distortion *60.3 % and less(1 Hz to 100 Hz), 0.5 % and less(100.1 Hz to 330 Hz), 1.5 %/kHz and less(330.1 Hz to 5 kHz)
Transient response *7Response FAST : 40 μs(TYP)
Response speed Tr/Tf *8Response FAST : 40 μs(TYP) Response MEDIUM : 100 μs(TYP) Response SLOW : 300 μs(TYP)

* 1 With respect to changes in the rated range of input voltage. 2 With respect to 0 % to 100 % changes in the rating of output current. When the output phase voltage is between 80 V and 160 V (L range) or 160 V and 320 V (H range) and the load power factor is 1, and the response is FAST. At the output terminal block, when the compensation function is not used. * 3 Voltage variation over 40 Hz to 5 kHz in AC mode with 55 Hz as the reference. When the output phase voltage is between 80 V and 160 V or 160 V and 320 V and the load power factor is 1, and the response is FAST, at the output terminal block. * 4 5 Hz to 1 MHz components in DC mode. * 5 With respect to changes in the operating temperature range. When the output phase voltage is 100 V or 200 V, with no load. * 6 When the output phase voltage is between 80 V and 160 V or 160 V and 320 V and the load power factor is 1, and the response is FAST, at the output terminal block. * 7 When the output voltage is 100 V or 200 V, the load power factor is 1, and the output current changes from 0 A to the rated value and from the rated value to 0 A. * 8 At 10 % to 90 % of the output voltage.


Measurement

ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
  PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
  PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
Voltage Rms valueResolution0.1 V
Accuracy *1DC, 40 Hz to 999.9 Hz : ±(0.3 % of reading +1 V), 1 kHz to 5 kHz : ±(0.5 % of reading +1 V)
Current Rms valueResolution0 to 99.99 A: 0.01 A, 100 to 999.9 A: 0.1 A
Accuracy *1 *245 Hz to 65 Hz : ±(0.3 % of reading +0.3 % of f.s) DC, 40 Hz to 999.9 Hz : ±(0.6 % of reading +0.6 % of f.s)
1 kHz to 5 kHz : ±(1.2 % of reading +1.2 % of f.s)
Current peak valueResolution0 to 99.99 A: 0.01 A, 100 to 999.9 A: 0.1 A
Accuracy *1 *34 % of f.s
Active powerResolution1 W *5
Accuracy *1 *2 *445 Hz to 65 Hz : ±(0.3 % of reading +0.3 % of f.s)
Apparent powerResolution1 VA *6
Apparent powerResolution0.01
Power factorResolution0.1°
Harmonic measurementFrequency range (fundamental wave)10 Hz to 1 kHz
Upper limit of harmonic analysis5th to 50th
FFT data length4096
Measurement itemsRms voltage and current, phase angle, THD
Recommended calibration period1 year

* 1 At ambient temperature of 23 °C±5 °C. * 2 At 10 % to 100 % of maximum rated current, sine wave. * 3 Pulse height of sine wave * 4 At a power factor of 1. * 5 When the measured value is 0 to less than 100 W, the resolution is 0.1 W. *6 When the measured value is 0 to less than 100 VA, the resolution is 0.1 VA.


General

ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
  PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
  PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
Insulation resistanceBetween input and chassis, output and chassis, and input and output500 Vdc, 10 MΩ or more
Withstanding voltageBetween input and chassis, output and chassis, and input and output1500 Vac / 2150 Vdc, 1 minute
Electromagnetic compatibility *1 *2Complies with the requirements of the following directive and standards. EMC Directive 2014/30/EU EN 61326-1 (Class A*3), EN 55011 (Class A*3, Group 1*4), EN 61000-3-2*5, EN 61000-3-3*5 Applicable under the following conditions The maximum length of all cabling and wiring connected to the product must be less than 3 m.Complies with the requirements of the following directive and standards. EMC Directive 2014/30/EU EN 61326-1 (Class A*3) EN 55011 (Class A*3, Group 1*4) Applicable under the following conditions The maximum length of all cabling and wiring connected to the product must be less than 3 m.
Safety *1Complies with the requirements of the following directive and standard. Low Voltage Directive 2014/35/EU*2 EN 61010-1 (Class I*6, Pollution Degree2*7)
Environmental conditionsOperating environmentIndoor use, overvoltage category II
Operating temperature range0 °C to +50 °C (32 °F to +122 °F)
Storage temperature range-10 °C to +60 °C (14 °F to +140 °F)
Operating humidity range20 %rh to 80 %rh (no condensation)
Storage humidity range90 %rh and less (no condensation)
AltitudeUp to 2000 m
WeightModels without regeneration function18 kg (39.7 lb)21 kg (46.3 lb)25 kg (55.1 lb)43 kg (94.8 lb)66 kg (145.5 lb)120 kg (264.6 lb)130 kg (286.6 lb)160 kg (352.7 lb)180 kg (396.8 lb)
200 V input models with regeneration function–––43 kg (94.8 lb)67 kg (147.7 lb)120 kg (264.6 lb)130 kg (286.6 lb)160 kg (352.7 lb)180 kg (396.8 lb)
400 V input models with regeneration function–––46 kg (101.4 lb)70 kg (154.3 lb)120 kg (264.6 lb)140 kg (308.6 lb)170 kg (374.8 lb)180 kg (396.8 lb)
Input terminalM6M53P3W input model: M8,
3P4W input model: M5
Output terminalM6M5M6M8
AccessoriesCable tie (4 pcs.), External control(DIGITAL I/O) connector (1 pc.), Heavy object warning label (1 pc.)*Excludes PCR1000WEA, Read This First! (1 copy), Quick Reference(1 sheet), CD-ROM (1 disc), Safety Information (1 copy)

*1 Does not apply to specially ordered or modified products. *2 Only on models that have the CE marking on the panel. *3 This is Class A equipment. This product is intended for use in an industrial environment. This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts. *4 This is Group 1 equipment. This product does not generate and/or use intentionally radio-frequency energy, in the form of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment of material or inspection/analysis purpose. *5 This does not apply to the PCR6000WEA2R (3-phase 3-wire 200V input model). *6 This is Class I equipment. Be sure to ground this product’s protective conductor terminal. The safety of this product is only guaranteed when the product is properly grounded. *7 Pollution is addition of foreign matter (solid, liquid or gaseous) that may produce a reduction of dielectric strength or surface resistivity. Pollution Degree 2 assumes that only nonconductive pollution will occur except for an occasional temporary conductivity caused by condensation.


Output Impedance Setting

ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
  PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
  PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
L range1P0 Ω to 2000 mΩ0 Ω to 1000 m Ω0 Ω to 667 mΩ0 Ω to 333 mΩ0 Ω to 167 m Ω0 Ω to 111 m Ω0 Ω to 83 m Ω0 Ω to 67 m Ω0 Ω to 56 m Ω
1P3W 3P––0 Ω to 2000 mΩ0 Ω to 1000 m Ω0 Ω to 500 m Ω0 Ω to 333 m Ω0 Ω to 250 m Ω0 Ω to 200 m Ω0 Ω to 167 m Ω
H range1P0 Ω to 8000 m Ω0 Ω to 4000 m Ω0 Ω to 2667 m Ω0 Ω to 1333 m Ω0 Ω to 667 m Ω0 Ω to 444 m Ω0 Ω to 333 m Ω0 Ω to 267 m Ω0 Ω to 222 m Ω
1P3W 3P––0 Ω to 8000 m Ω0 Ω to 4000 m Ω0 Ω to 2000 mΩ0 Ω to 1333 m Ω0 Ω to 1000 m Ω0 Ω to 800 m Ω0 Ω to 667 m Ω

Output Impedance Setting – Reactance component [Response: FAST]

ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
  PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
  PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
L range1P40 μH to 2000 μH20 μH to 1000 μH13 μH to 667 μH7 μH to 333 μH3 μH to 167 μH2 μH to 111 μH2 μH to 83 μH1 μH to 67 μH1 μH to 56 μH
1P3W 3P––40 μH to 2000 μH20 μH to 1000 μH10 μH to 500 μH7 μH to 333 μH5 μH to 250 μH4 μH to 200 μH3 μH to 167 μH
H range1P160 μH to 8000 μH80 μH to 4000 μH53 μH to 2667 μH27 μH to 1333 μH13 μH to 667 μH9 μH to 444 μH7 μH to 333 μH5 μH to 267 μH4 μH to 222 μH
1P3W 3P––160 μH to 8000 μH80 μH to 4000 μH40 μH to 2000 μH27 μH to 1333 μH20 μH to 1000 μH16 μH to 800 μH13 μH to 667 μH

Output Impedance Setting – Reactance component [Response: MED]

ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
  PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
  PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
L range1P80 μH to 2000 μH40 μH to 1000 μH27 μH to 667 μH13 μH to 333 μH7 μH to 167 μH4 μH to 111 μH3 μH to 83 μH3 μH to 67 μH2 μH to 56 μH
1P3W 3P––80 μH to 2000 μH40 μH to 1000 μH20 μH to 500 μH13 μH to 333 μH10 μH to 250 μH8 μH to 200 μH7 μH to 167 μH
H range1P320 μH to 8000 μH160 μH to 4000 μH107 μH to 2667 μH53 μH to 1333 μH27 μH to 667 μH18 μH to 444 μH13 μH to 333 μH11 μH to 267 μH9 μH to 222 μH
1P3W 3P––320 μH to 8000 μH160 μH to 4000 μH80 μH to 2000 μH53 μH to 1333 μH40 μH to 1000 μH32 μH to 800 μH27 μH to 667 μH

Output Impedance Setting – Reactance component [Response: SLOW]

ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
  PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
  PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
L range1P240 μH to 2000 μH120 μH to 1000 μH80 μH to 667 μH40 μH to 333 μH20 μH to 167 μH13 μH to 111 μH10 μH to 83 μH8 μH to 67 μH7 μH to 56 μH
1P3W 3P––240 μH to 2000 μH120 μH to 1000 μH60 μH to 500 μH40 μH to 333 μH30 μH to 250 μH24 μH to 200 μH20 μH to 167 μH
H range1P960 μH to 8000 μH480 μH to 4000 μH320 μH to 2667 μH160 μH to 1333 μH80 μH to 667 μH53 μH to 444 μH40 μH to 333 μH32 μH to 267 μH27 μH to 222 μH
1P3W 3P––960 μH to 8000 μH480 μH to 4000 μH240 μH to 2000 μH160 μH to 1333 μH120 μH to 1000 μH96 μH to 800 μH80 μH to 667 μH

Limit Values and Protection Functions (Common Specification)

ZOOM
 Setting rangeResolution
Voltage protectionAC voltage upper limit
AC voltage lower limit		0.0 V to 322.0 V0.1 V
DC voltage upper limit
DC voltage lower limit		-455 V to 455 V0.1 V
Output overvoltage protection(OVP)Rms value14.0 V to 500.5 V0.1 V
Positive peak value Negative peak value14.0 V to 500.5 V
-500.5 V to -14.0 V		0.1 V
Power module overvoltage protectionFixed–
Output undervoltage protection (UVP)0.0 V to 500.5 V0.1 V
Frequency protectionFrequency upper limit
Frequency lower limit		1 Hz to 5000 Hz
500 Hz LMT model: 1 Hz to 500 Hz (Three-phase output)		0.01 Hz (1.00 Hz to 100.0 Hz), 0.1 Hz (100.0 Hz to 1000 Hz), 1 Hz (1000 Hz to 5000 Hz)
Current protectionCurrent limit *1Maximum output current × 0.1 to maximum output current × 1.10.01 A (0.35 A to 100.0 A), 0.1 A (100.0 A to 1000 A)
Positive peak current limit
Negative peak current limit *2		Maximum output current × 0.1 to maximum output current × 4.2
Overheat protectionPower module overheat protectionFixed–
Fan errorFixed–
Overload protectionRated current or current limitCurrent limit resolution
Independent operation detectionFixed–
Sensing error detection±(10 % +10 V) with respect to the output terminal voltage–

*1 The current that can actually be supplied is 1.1 times the rated current or the current limit, whichever is less. *2 The current that can actually be supplied is the maximum peak current or the current limit, whichever is less.


Options

Input power cable

For PCR1000WEA/2000WEA (single-phase 2-wire input)

For PCR3000WEA2 (single-phase 2-wire input)

For PCR6000WEA2/12000WEA2 (3-phase 4-wire 400V input)

For PCR18000WEA2 (3-phase 4-wire 400 V input)

For PCR24000WEA2 (three-phase 4-wire 400 V input)

For PCR30000WEA2/36000WEA2 (three-phase 4-wire 400 V input)

6 kVA single-phase/three-phase output transformer

The device is designed to perform high-voltage tests on avionics equipment. Thanks to the built-in step-up transformer, it can handle 360 V DO-160 abnormal tests.

Connector for external control

DIGITAL I/O

ANALOG I/O

Parallel-operation cable

Length: 1 m.

Power signal cable

Length: 1 m.

GPIB Interface

Base Hold Angles

Rack Mount Bracket

For PCR1000WEA/2000WEA/3000WEA2

For PCR6000WEA2(R)

For PCR12000WEA2(R)

Output Terminal Box

2 lineups depend on output power, “6 kVA to 18 kVA model” and “24 kVA to 36 kVA model”.
Toggle between “single-phase” or “single-phase 3-wire/3-phase” output terminal using main unit switch.

Output terminal box (18 kVA)

Output terminal box (36 kVA)

2D CAD

Ver.3.xx model

Ver.3.xx model

PCR1000WEA/PCR2000WEA/PCR3000WEA2

Outline | PDF 87.10 KB
Icon
87.10 KB

Outline | DXF 142.08 KB
Icon
142.08 KB

Base view | PDF 82.70 KB
Icon
82.70 KB

Base view | DXF 134.26 KB
Icon
134.26 KB


    PCR6000WEA2

    Outline | PDF 132.24 KB
    Icon
    132.24 KB

    Outline | DXF 231.91 KB
    Icon
    231.91 KB

    Base view | PDF 146.97 KB
    Icon
    146.97 KB

    Base view | DXF 204.29 KB
    Icon
    204.29 KB


      PCR12000WEA2

      Base view | PDF 146.97 KB
      Icon
      146.97 KB

      Base view | DXF 204.29 KB
      Icon
      204.29 KB

      Outline | PDF 139.69 KB
      Icon
      139.69 KB

      Outline | DXF 249.88 KB
      Icon
      249.88 KB


        PCR18000WEA2/PCR24000WEA2

        Outline | DXF 382.41 KB
        Icon
        382.41 KB

        Outline | PDF 153.94 KB
        Icon
        153.94 KB


          PCR30000WEA2/PCR36000WEA2

          Outline | DXF 382.41 KB
          Icon
          382.41 KB

          Outline | PDF 153.94 KB
          Icon
          153.94 KB


            Ver.4.xx model

            Ver.4.xx model

            PCR1000WEA/PCR2000WEA/PCR3000WEA2

            Outline | DXF 219.72 KB
            Icon
            219.72 KB


              PCR6000WEA2

              Outline | DXF 289.32 KB
              Icon
              289.32 KB


                PCR12000WEA2

                Outline | DXF 304.29 KB
                Icon
                304.29 KB


                  PCR18000WEA2/PCR24000WEA2

                  Outline | DXF 518.08 KB
                  Icon
                  518.08 KB


                    PCR30000WEA2/PCR36000WEA2

                    Outline | DXF 725.62 KB
                    Icon
                    725.62 KB


                      Operation Manuals


                      Ver.3.xx model

                      Ver.3.xx model

                      PCR-WEA
                      Icon
                      0.00 KB
                      LOGIN REQUIRED


                        Ver.4.xx model

                        Ver.4.xx model

                        PCR-WEA(LCD model)
                        Icon
                        0.00 KB
                        LOGIN REQUIRED

                          Updater / Driver

                          記事が見つかりませんでした。

                          Please feel free to contact us with any questions or concerns.

                          Download a Product Catalog View List
                          Request a Quotation Contact Us
                          close

                          Search

                          Entering the model number, capacity, etc.
