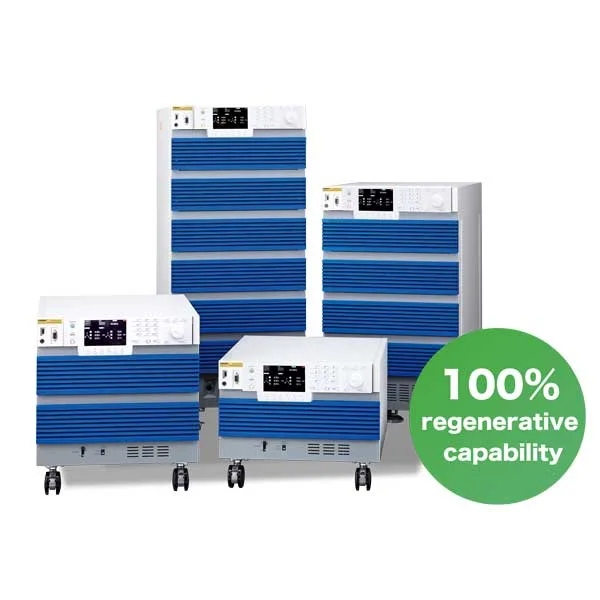

Ultra-Compact AC/DC Programmable Power Supply

PCR-WEA2R Series

PCR-WEA2R-series

2,900,000円 – 15,900,000円

  • Compact size: 6 kVA in 6U (PCR6000WEA2/PCR6000WEA2R)
  • Up to 36 kVA in a single unit
  • AC output *1: Single-phase/Single-phase three-wire/Three-phase
  • DC output: +/-, 100% of rated power
  • 100% Regenerative-power capability
    (Only ”R” models (PCR-WEA2R) with 3 phase 200 V input or 3 phase 400 V
    input. Regeneration on premises only.)
  • Mix-and-match parallel operation up to 144 kVA Same model set up is not required.*2
  • Flexible digital interface: LAN (LXI), USB, RS232C, GPIB (option)
  • Power line disturbance simulation features
  • Sequence function
  • External analog, digital control function (standard)
  • Power-saving function
  • Output frequency up to 5 kHz
  • Output rating: AC 0 to 320 Vrms, DC 0 to ±452 V

*1 For 3 kVA or more, the multi-type can switch between single-phase, single-phase 3-wire, and threephase output (PCR-WEA2). *2 Parallel operation is possible with a maximum of four units of 6 kVA or higher models, and different models can be combined as long as they have the same input voltage and input wiring system.


LAN LXILAN LXIUKCA
Login to myKIKUSUI / What is myKIKUSUI?
Request for Quotation
ImageSKU入力：皮相電力（kVA以下）Output rating AC mode: Power capacity標準価格WEBかんたんお見積り
PCR6000WEA2R7.86kVA100% regenerative-power capability2,900,000円
（税込：3,190,000円）
PCR12000WEA2R15.612kVA100% regenerative-power capability5,500,000円
（税込：6,050,000円）
PCR18000WEA2R23.418kVA100% regenerative-power capability8,100,000円
（税込：8,910,000円）
PCR24000WEA2R31.224kVA100% regenerative-power capability10,700,000円
（税込：11,770,000円）
PCR30000WEA2R3930kVA100% regenerative-power capability13,300,000円
（税込：14,630,000円）
PCR36000WEA2R46.836kVA100% regenerative-power capability15,900,000円
（税込：17,490,000円）
SKU: PCR-WEA2R-series

Line-up

  • AC mode output rating
  • DC mode output rating
  • Input ratings (AC rms)
  • ZOOM
    Product ImagesModelPricePhasePower capacity[VA]Phase voltage[V]Max. current (L/H range)[A]※1Frequency[Hz]
    PCR6000WEAPCR6000WEA2R
    PCR6000WEA2    		2,900,000円 （税込：3,190,000円）Single phase6k(The spec guaranteed voltage range)
    1 to 160/ 2 to 320
    (L/H output range)

    (Voltage setting range)
    0 to 161.0/ 0 to 322.0    		60 / 301 to 5000
    Three-phase20 / 10
    Single-phase Three-wire4k
    PCR1000WEAPCR12000WEA2R
    PCR12000WEA2    		5,500,000円 （税込：6,050,000円）Single phase12k120 / 60
    Three-phase40 / 20
    Single-phase Three-wire8k
    PCR18000WEAPCR18000WEA2R
    PCR18000WEA2    		8,100,000円 （税込：8,910,000円）Single phase18k180 / 90
    Three-phase60 / 30
    Single-phase Three-wire12k
    PCR24000WEAPCR24000WEA2R
    PCR24000WEA2    		10,700,000円 （税込：11,770,000円）Single phase24k240 / 120
    Three-phase80 / 40
    Single-phase Three-wire16k
    PCR30000WEAPCR30000WEA2R
    PCR30000WEA2    		13,300,000円 （税込：14,630,000円）Single phase30k300 / 150
    Three-phase100 / 50
    Single-phase Three-wire20k
    PCR36000WEAPCR36000WEA2R
    PCR36000WEA2    		15,900,000円 （税込：17,490,000円）Single phase36k360 / 180
    Three-phase120 / 60
    Single-phase Three-wire24k
  • ZOOM
    Product ImagesModelPricePower capacity[W]Voltage (nominal)[V]Max. current (L/H range)[A]※2
    PCR6000WEAPCR6000WEA2R
    PCR6000WEA2    		2,900,000円 （税込：3,190,000円）6k(The spec guaranteed voltage range)
    ±1.4〜 ±226 / ±2.8〜 ±452
    (L/H output range)

    (Voltage setting range)
    -227.5 〜 +227.5 / -455.0 〜 +455.0    		60 / 30
    PCR1000WEAPCR12000WEA2R
    PCR12000WEA2    		5,500,000円 （税込：6,050,000円）12k120 / 60
    PCR18000WEAPCR18000WEA2R
    PCR18000WEA2    		8,100,000円 （税込：8,910,000円）18k180 / 90
    PCR24000WEAPCR24000WEA2R
    PCR24000WEA2    		10,700,000円 （税込：11,770,000円）24k240 / 120
    PCR30000WEAPCR30000WEA2R
    PCR30000WEA2    		13,300,000円 （税込：14,630,000円）30k300 / 150
    PCR36000WEAPCR36000WEA2R
    PCR36000WEA2    		15,900,000円 （税込：17,490,000円）36k360 / 180
  • ZOOM
    Product ImagesModelPricePhaseVoltage (nominal)[V]Apparent power[kVA以下]Current[A以下]
    PCR6000WEAPCR6000WEA2R2,900,000円 （税込：3,190,000円）3-phase 3-wire 200 VLine voltage 200 to 2407.827
    3-phase 3-wire 400 VLine voltage 380 to 480
    PCR1000WEAPCR12000WEA2R5,500,000円 （税込：6,050,000円）3-phase 3-wire 200 VLine voltage 200 to 24015.653
    3-phase 3-wire 400 VLine voltage 380 to 480
    PCR18000WEAPCR18000WEA2R8,100,000円 （税込：8,910,000円）3-phase 3-wire 200 VLine voltage 200 to 24023.480
    3-phase 3-wire 400 VLine voltage 380 to 480
    PCR24000WEAPCR24000WEA2R10,700,000円 （税込：11,770,000円）3-phase 3-wire 200 VLine voltage 200 to 24031.2106
    3-phase 3-wire 400 VLine voltage 380 to 480
    PCR30000WEAPCR30000WEA2R13,300,000円 （税込：14,630,000円）3-phase 3-wire 200 VLine voltage 200 to 24039133
    3-phase 3-wire 400 VLine voltage 380 to 480
    PCR36000WEAPCR36000WEA2R15,900,000円 （税込：17,490,000円）3-phase 3-wire 200 VLine voltage 200 to 24046.8159
    3-phase 3-wire 400 VLine voltage 380 to 480

Specifications

Input (AC rms)

ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
  PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
  PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
Nominal input voltage1P2W input model100 Vac to 120 Vac / 200 Vac to 240 Vac *1–
3P3W 200 V input model / 3P3W 400 V input model–200 Vac to 240 Vac (3 phase line voltage) *2 / 380 Vac to 480 Vac (3 phase line voltage) *2 *6
3P4W input model–380 Vac to 480 Vac (3 phase line voltage) *3
PhaseSingle-phaseThree-phase
Nominal input Frequency50 Hz to 60 Hz
Input frequency range45 Hz to 65 Hz
Apparent power1.4 kVA and less2.7 kVA and less4 kVA and less7.8 kVA and less15.6 kVA and less23.4 kVA and less31.2 kVA and less39 kVA and less46.8 kVA and less
Power factor *40.95(TYP)200 V: 0.97(TYP), 400 V: 0.95(TYP) 3P3W input model / 0.95(TYP) 3P4W input model
Maximum current1P2W input model *117 A / 8.5 A32 A / 16 A48 A / 24 A–
3P3W 200 V input model–27 A53 A80 A106 A133 A159 A
3P3W 400 V input model 14 A28 A42 A56 A70 A84 A
3P4W input model–14 A28 A42 A56 A70 A84 A
Hold-up time for power interruption *410 ms
Protective conductor current *51P2W input model *13.5 mA or less–
3P3W 200 V input model–10 mA or less15 mA or less20 mA or less25 mA or less30 mA or less35 mA or less
3P3W 400 V input model–10 mA or less20 mA or less30 mA or less40 mA or less50 mA or less60 mA or less
3P4W input model–3.5 mA or less

*1 100 V/200 V input system (auto select) *2 Models with an “R” in the name (6 kVA or higher) have a three-phase, three-wire input. *3 Models of 6 kVA or more without an “R” in the name have three-phase 4-wire input. *4 At output voltage 100 V/200 V, rated output current, sine wave, load power factor 1, output frequency 40 Hz to 1 kHz *5 At output voltage 100 V/200 V, rated output current, sine wave, load power factor 1, output frequency 45 Hz to 65 Hz *6 For the 400V input model, do not connect to transformer equipment with isolation voltage exceed-ing 300 V. It cannot be connected to a delta-connected power distribution facility with one pole grounded.

Output

ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
  PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
  PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
Maximum peak current *114 times the maximum output current
Inrush current capacity *33 times the rated current (0.07 s) *12
1.4 times the rated current (0.5 s)		1.4 times the rated current (0.5 s)
Efficiency *1082 %(TYP)85 %(TYP)
100% regenerative-power capability

ZOOM
ModelSingle-phase/three-phase switchable model
  PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
Maximum regenerated power *16 kVA12 kVA18 kVA24 kVA30 kVA36 kVA
Maximum reverse power flow current *1 *21P2W60 A / 30 A120 A / 60 A180 A / 90 A240 A / 120 A300 A / 150 A360 A / 180 A
1P3W 3P20 A / 10 A40 A / 20 A60 A / 30 A80 A / 40 A100 A / 50 A120A / 60 A
Regeneration efficiency *385 %(TYP)
Output current harmonic distortionTHD: 5 % and less, each harmonic: 3 % and less (2nd to 40th)

* 1 When the output phase voltage is between 100 Vac and 161 Vac or 200 Vac and 322 Vac, the output current is reduced by the output voltage. When the output frequency is between 1 Hz and 40 Hz, the output current is reduced by the output frequency. The output current is 70 % at 1 Hz. * 2 When the output voltage is 100 V or 200 V and the output frequency is between 40 Hz and 1 kHz (when the current phase is -90 deg to -180 deg or 90 deg to 180 deg relative to the output voltage) *3 When the output voltage is 100 V or 200 V, the output current is the rated value, sine wave, the load power factor is 1, and the output frequency is between 45 Hz to 65 Hz.

Output Voltage Stability (Phase Voltage)

ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
 PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
 PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
Line regulation *1Within ±0.1 %
Load regulation *2Within ±0.1 V/ ±0.2 V(1 Hz to 100 Hz)
Within ±0.3 V/ ±0.6 V(100.1 Hz to 500 Hz)
Within ±1 V/ ±2 V(500.1 Hz to 1 kHz)		Within ±0.2 V/ ±0.4 V(1 Hz to 100 Hz)
Within ±0.3 V/ ±0.6 V(100.1 Hz to 500 Hz)
Within ±1 V/ ±2 V(500.1 Hz to 1 kHz)
Output frequency variation *3When the output voltage correction function is enabled : Within ±0.3 %(1 Hz to 1 kHz), Within ±10 %(1001 Hz to 5 kHz) When the output voltage correction function is disabled : Within -3 dB(5 kHz)
Ripple noise *4≤ 0.25 Vrms
Ambient temperature variation *5±100 ppm/ °C (TYP)
Total harmonic distortion *60.3 % and less(1 Hz to 100 Hz), 0.5 % and less(100.1 Hz to 330 Hz), 1.5 %/kHz and less(330.1 Hz to 5 kHz)
Transient response *7Response FAST : 40 μs(TYP)
Response speed Tr/Tf *8Response FAST : 40 μs(TYP) Response MEDIUM : 100 μs(TYP) Response SLOW : 300 μs(TYP)

* 1 With respect to changes in the rated range of input voltage. 2 With respect to 0 % to 100 % changes in the rating of output current. When the output phase voltage is between 80 V and 160 V (L range) or 160 V and 320 V (H range) and the load power factor is 1, and the response is FAST. At the output terminal block, when the compensation function is not used. * 3 Voltage variation over 40 Hz to 5 kHz in AC mode with 55 Hz as the reference. When the output phase voltage is between 80 V and 160 V or 160 V and 320 V and the load power factor is 1, and the response is FAST, at the output terminal block. * 4 5 Hz to 1 MHz components in DC mode. * 5 With respect to changes in the operating temperature range. When the output phase voltage is 100 V or 200 V, with no load. * 6 When the output phase voltage is between 80 V and 160 V or 160 V and 320 V and the load power factor is 1, and the response is FAST, at the output terminal block. * 7 When the output voltage is 100 V or 200 V, the load power factor is 1, and the output current changes from 0 A to the rated value and from the rated value to 0 A. * 8 At 10 % to 90 % of the output voltage.

Measurement

ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
  PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
  PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
Voltage Rms valueResolution0.1 V
Accuracy *1DC, 40 Hz to 999.9 Hz : ±(0.3 % of reading +1 V), 1 kHz to 5 kHz : ±(0.5 % of reading +1 V)
Current Rms valueResolution0 to 99.99 A: 0.01 A, 100 to 999.9 A: 0.1 A
Accuracy *1 *245 Hz to 65 Hz : ±(0.3 % of reading +0.3 % of f.s) DC, 40 Hz to 999.9 Hz : ±(0.6 % of reading +0.6 % of f.s)
1 kHz to 5 kHz : ±(1.2 % of reading +1.2 % of f.s)
Current peak valueResolution0 to 99.99 A: 0.01 A, 100 to 999.9 A: 0.1 A
Accuracy *1 *34 % of f.s
Active powerResolution1 W *5
Accuracy *1 *2 *445 Hz to 65 Hz : ±(0.3 % of reading +0.3 % of f.s)
Apparent powerResolution1 VA *6
Apparent powerResolution0.01
Power factorResolution0.1°
Harmonic measurementFrequency range (fundamental wave)10 Hz to 1 kHz
Upper limit of harmonic analysis5th to 50th
FFT data length4096
Measurement itemsRms voltage and current, phase angle, THD
Recommended calibration period1 year

* 1 At ambient temperature of 23 °C±5 °C. * 2 At 10 % to 100 % of maximum rated current, sine wave. * 3 Pulse height of sine wave * 4 At a power factor of 1. * 5 When the measured value is 0 to less than 100 W, the resolution is 0.1 W. *6 When the measured value is 0 to less than 100 VA, the resolution is 0.1 VA.

General

ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
  PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
  PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
Insulation resistanceBetween input and chassis, output and chassis, and input and output500 Vdc, 10 MΩ or more
Withstanding voltageBetween input and chassis, output and chassis, and input and output1500 Vac / 2150 Vdc, 1 minute
Electromagnetic compatibility *1 *2Complies with the requirements of the following directive and standards. EMC Directive 2014/30/EU EN 61326-1 (Class A*3), EN 55011 (Class A*3, Group 1*4), EN 61000-3-2*5, EN 61000-3-3*5 Applicable under the following conditions The maximum length of all cabling and wiring connected to the product must be less than 3 m.Complies with the requirements of the following directive and standards. EMC Directive 2014/30/EU EN 61326-1 (Class A*3) EN 55011 (Class A*3, Group 1*4) Applicable under the following conditions The maximum length of all cabling and wiring connected to the product must be less than 3 m.
Safety *1Complies with the requirements of the following directive and standard. Low Voltage Directive 2014/35/EU*2 EN 61010-1 (Class I*6, Pollution Degree2*7)
Environmental conditionsOperating environmentIndoor use, overvoltage category II
Operating temperature range0 °C to +50 °C (32 °F to +122 °F)
Storage temperature range-10 °C to +60 °C (14 °F to +140 °F)
Operating humidity range20 %rh to 80 %rh (no condensation)
Storage humidity range90 %rh and less (no condensation)
AltitudeUp to 2000 m
WeightModels without regeneration function18 kg (39.7 lb)21 kg (46.3 lb)25 kg (55.1 lb)43 kg (94.8 lb)66 kg (145.5 lb)120 kg (264.6 lb)130 kg (286.6 lb)160 kg (352.7 lb)180 kg (396.8 lb)
200 V input models with regeneration function–––43 kg (94.8 lb)67 kg (147.7 lb)120 kg (264.6 lb)130 kg (286.6 lb)160 kg (352.7 lb)180 kg (396.8 lb)
400 V input models with regeneration function–––46 kg (101.4 lb)70 kg (154.3 lb)120 kg (264.6 lb)140 kg (308.6 lb)170 kg (374.8 lb)180 kg (396.8 lb)
Input terminalM6M53P3W input model: M8,
3P4W input model: M5
Output terminalM6M5M6M8
AccessoriesCable tie (4 pcs.), External control(DIGITAL I/O) connector (1 pc.), Heavy object warning label (1 pc.)*Excludes PCR1000WEA, Read This First! (1 copy), Quick Reference(1 sheet), CD-ROM (1 disc), Safety Information (1 copy)

*1 Does not apply to specially ordered or modified products. *2 Only on models that have the CE marking on the panel. *3 This is Class A equipment. This product is intended for use in an industrial environment. This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts. *4 This is Group 1 equipment. This product does not generate and/or use intentionally radio-frequency energy, in the form of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment of material or inspection/analysis purpose. *5 This does not apply to the PCR6000WEA2R (3-phase 3-wire 200V input model). *6 This is Class I equipment. Be sure to ground this product’s protective conductor terminal. The safety of this product is only guaranteed when the product is properly grounded. *7 Pollution is addition of foreign matter (solid, liquid or gaseous) that may produce a reduction of dielectric strength or surface resistivity. Pollution Degree 2 assumes that only nonconductive pollution will occur except for an occasional temporary conductivity caused by condensation.

Output Impedance Setting

ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
  PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
  PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
L range1P0 Ω to 2000 mΩ0 Ω to 1000 m Ω0 Ω to 667 mΩ0 Ω to 333 mΩ0 Ω to 167 m Ω0 Ω to 111 m Ω0 Ω to 83 m Ω0 Ω to 67 m Ω0 Ω to 56 m Ω
1P3W 3P––0 Ω to 2000 mΩ0 Ω to 1000 m Ω0 Ω to 500 m Ω0 Ω to 333 m Ω0 Ω to 250 m Ω0 Ω to 200 m Ω0 Ω to 167 m Ω
H range1P0 Ω to 8000 m Ω0 Ω to 4000 m Ω0 Ω to 2667 m Ω0 Ω to 1333 m Ω0 Ω to 667 m Ω0 Ω to 444 m Ω0 Ω to 333 m Ω0 Ω to 267 m Ω0 Ω to 222 m Ω
1P3W 3P––0 Ω to 8000 m Ω0 Ω to 4000 m Ω0 Ω to 2000 mΩ0 Ω to 1333 m Ω0 Ω to 1000 m Ω0 Ω to 800 m Ω0 Ω to 667 m Ω
Output Impedance Setting – Reactance component [Response: FAST]

ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
  PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
  PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
L range1P40 μH to 2000 μH20 μH to 1000 μH13 μH to 667 μH7 μH to 333 μH3 μH to 167 μH2 μH to 111 μH2 μH to 83 μH1 μH to 67 μH1 μH to 56 μH
1P3W 3P––40 μH to 2000 μH20 μH to 1000 μH10 μH to 500 μH7 μH to 333 μH5 μH to 250 μH4 μH to 200 μH3 μH to 167 μH
H range1P160 μH to 8000 μH80 μH to 4000 μH53 μH to 2667 μH27 μH to 1333 μH13 μH to 667 μH9 μH to 444 μH7 μH to 333 μH5 μH to 267 μH4 μH to 222 μH
1P3W 3P––160 μH to 8000 μH80 μH to 4000 μH40 μH to 2000 μH27 μH to 1333 μH20 μH to 1000 μH16 μH to 800 μH13 μH to 667 μH
Output Impedance Setting – Reactance component [Response: MED]

ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
  PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
  PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
L range1P80 μH to 2000 μH40 μH to 1000 μH27 μH to 667 μH13 μH to 333 μH7 μH to 167 μH4 μH to 111 μH3 μH to 83 μH3 μH to 67 μH2 μH to 56 μH
1P3W 3P––80 μH to 2000 μH40 μH to 1000 μH20 μH to 500 μH13 μH to 333 μH10 μH to 250 μH8 μH to 200 μH7 μH to 167 μH
H range1P320 μH to 8000 μH160 μH to 4000 μH107 μH to 2667 μH53 μH to 1333 μH27 μH to 667 μH18 μH to 444 μH13 μH to 333 μH11 μH to 267 μH9 μH to 222 μH
1P3W 3P––320 μH to 8000 μH160 μH to 4000 μH80 μH to 2000 μH53 μH to 1333 μH40 μH to 1000 μH32 μH to 800 μH27 μH to 667 μH
Output Impedance Setting – Reactance component [Response: SLOW]

ZOOM
ModelSingle-phase outputSingle-phase/three-phase switchable model
  PCR1000WEAPCR2000WEAPCR3000WEA2PCR6000WEA2PCR12000WEA2PCR18000WEA2PCR24000WEA2PCR30000WEA2PCR36000WEA2
  PCR6000WEA2RPCR12000WEA2RPCR18000WEA2RPCR24000WEA2RPCR30000WEA2RPCR36000WEA2R
L range1P240 μH to 2000 μH120 μH to 1000 μH80 μH to 667 μH40 μH to 333 μH20 μH to 167 μH13 μH to 111 μH10 μH to 83 μH8 μH to 67 μH7 μH to 56 μH
1P3W 3P––240 μH to 2000 μH120 μH to 1000 μH60 μH to 500 μH40 μH to 333 μH30 μH to 250 μH24 μH to 200 μH20 μH to 167 μH
H range1P960 μH to 8000 μH480 μH to 4000 μH320 μH to 2667 μH160 μH to 1333 μH80 μH to 667 μH53 μH to 444 μH40 μH to 333 μH32 μH to 267 μH27 μH to 222 μH
1P3W 3P––960 μH to 8000 μH480 μH to 4000 μH240 μH to 2000 μH160 μH to 1333 μH120 μH to 1000 μH96 μH to 800 μH80 μH to 667 μH
Limit Values and Protection Functions (Common Specification)

ZOOM
 Setting rangeResolution
Voltage protectionAC voltage upper limit
AC voltage lower limit		0.0 V to 322.0 V0.1 V
DC voltage upper limit
DC voltage lower limit		-455 V to 455 V0.1 V
Output overvoltage protection(OVP)Rms value14.0 V to 500.5 V0.1 V
Positive peak value Negative peak value14.0 V to 500.5 V
-500.5 V to -14.0 V		0.1 V
Power module overvoltage protectionFixed–
Output undervoltage protection (UVP)0.0 V to 500.5 V0.1 V
Frequency protectionFrequency upper limit
Frequency lower limit		1 Hz to 5000 Hz
500 Hz LMT model: 1 Hz to 500 Hz (Three-phase output)		0.01 Hz (1.00 Hz to 100.0 Hz), 0.1 Hz (100.0 Hz to 1000 Hz), 1 Hz (1000 Hz to 5000 Hz)
Current protectionCurrent limit *1Maximum output current × 0.1 to maximum output current × 1.10.01 A (0.35 A to 100.0 A), 0.1 A (100.0 A to 1000 A)
Positive peak current limit
Negative peak current limit *2		Maximum output current × 0.1 to maximum output current × 4.2
Overheat protectionPower module overheat protectionFixed–
Fan errorFixed–
Overload protectionRated current or current limitCurrent limit resolution
Independent operation detectionFixed–
Sensing error detection±(10 % +10 V) with respect to the output terminal voltage–

*1 The current that can actually be supplied is 1.1 times the rated current or the current limit, whichever is less. *2 The current that can actually be supplied is the maximum peak current or the current limit, whichever is less.

Options

Input power cable

For PCR6000WEA2R (3-phase 3-wire 200 V/400 V input)/PCR12000WEA2R (3-phase 3-wire 400 V input)

For PCR12000WEA2R (3-phase 3-wire 200V input)

For PCR18000WEA2R (three-phase 3-wire 200V input) / PCR30000WEA2R/36000WEA2R (three-phase 3-wire 400V input)

For PCR18000WEA2R (three-phase 3-wire 400 V input)

For PCR24000WEA2R (three-phase 3-wire 200 V input)

For PCR24000WEA2R (three-phase 3-wire 400 V input)

For PCR30000WEA2R/36000WEA2R (3-phase 3-wire 200V input)

6 kVA single-phase/three-phase output transformer

The device is designed to perform high-voltage tests on avionics equipment. Thanks to the built-in step-up transformer, it can handle 360 V DO-160 abnormal tests.

Connector for external control

DIGITAL I/O

ANALOG I/O

Parallel-operation cable

Length: 1 m.

Power signal cable

Length: 1 m.

GPIB Interface

Base Hold Angles

Rack Mount Bracket

For PCR6000WEA2(R)

For PCR12000WEA2(R)

Output Terminal Box

● 2 lineups depend on output power, “6 kVA to 18 kVA model” and “24 kVA to 36 kVA model”.
● Toggle between “single-phase” or “single-phase 3-wire/3-phase” output terminal using main unit switch.

Output terminal box (18 kVA)

Output terminal box (36 kVA)

2D CAD

Ver.3.xx model

Ver.3.xx model

PCR6000WEA2R

Outline | PDF 132.24 KB
Icon
132.24 KB

Outline | DXF 231.91 KB
Icon
231.91 KB

Base view | PDF 146.97 KB
Icon
146.97 KB

Base view | DXF 204.29 KB
Icon
204.29 KB


    PCR12000WEA2R

    Base view | PDF 146.97 KB
    Icon
    146.97 KB

    Base view | DXF 204.29 KB
    Icon
    204.29 KB

    Outline | PDF 139.69 KB
    Icon
    139.69 KB

    Outline | DXF 249.88 KB
    Icon
    249.88 KB


      PCR18000WEA2R/PCR24000WEA2R

      Outline | DXF 382.41 KB
      Icon
      382.41 KB

      Outline | PDF 153.94 KB
      Icon
      153.94 KB


        PCR30000WEA2R/PCR36000WEA2R

        Outline | DXF 382.41 KB
        Icon
        382.41 KB

        Outline | PDF 153.94 KB
        Icon
        153.94 KB


          Ver.4.xx model

          Ver.4.xx model

          PCR6000WEA2R

          Outline | DXF 289.32 KB
          Icon
          289.32 KB


            PCR12000WEA2R

            Outline | DXF 304.29 KB
            Icon
            304.29 KB


              PCR18000WEA2R/PCR24000WEA2R

              Outline | DXF 518.08 KB
              Icon
              518.08 KB


                PCR30000WEA2R/PCR36000WEA2R

                Outline | DXF 725.62 KB
                Icon
                725.62 KB


                  Operation Manuals

                  Ver.3.xx model

                  Ver.3.xx model

                  PCR-WEA
                  Icon
                  0.00 KB
                  LOGIN REQUIRED

                    Ver.4.xx model

                    Ver.4.xx model

                    PCR-WEA(LCD model)
                    Icon
                    0.00 KB
                    LOGIN REQUIRED

                      Updater / Driver

                      記事が見つかりませんでした。

                      Technical Data

                      No downloads found!

                        Please feel free to contact us with any questions or concerns.

                        Download a Product Catalog View List
                        Request a Quotation Contact Us
                        close

                        Search

                        Entering the model number, capacity, etc.
